Zurück zur Projektübersicht
Download Datenblatt
Top Entry Shrouded Header THT
- XNI CONNECTOR
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 15
Article Number | B02B-XNISK-A-1 |
Number Of Contacts | 2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B03B-XNISK-A-1 |
Number Of Contacts | 3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B04B-XNISK-A-1 |
Number Of Contacts | 4 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B05B-XNISK-A-1 |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B06B-XNISK-A-1 |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B07B-XNISK-A-1 |
Number Of Contacts | 7 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B08B-XNISK-A-1 |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B09B-XNISK-A-1 |
Number Of Contacts | 9 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B10B-XNISK-A-1 |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B11B-XNISK-A-1 |
Number Of Contacts | 11 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Article Number | B15B-XNISK-A-1 |
Number Of Contacts | 15 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2.5mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 2.50 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

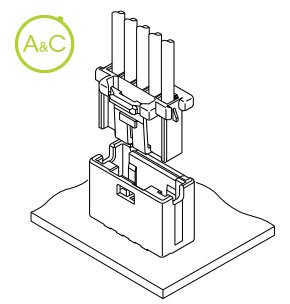

This is a 2.5mm pitch wire-to-board connector that has a mechanism to prevent incomplete mating by utilizing the inertial force when mating the connector.
In all circuits of connector, controlled key for preventing mismatching of mating is added, and two type connectors can be used in the same model.
Inertial lock structure
Finger-friendly design
Secure locking structure
Standards
UL Recognized E60389
RoHS Compliant
