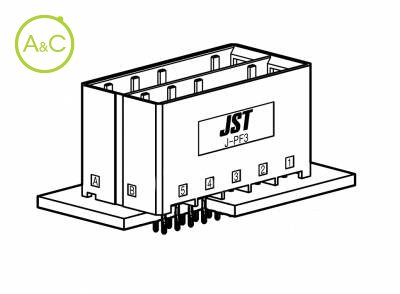

Top Entry Header Press Fit Type THT
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 10
| Article Number | B10B-JPF3MK-GKXXR | B10B-JPF3MK-GKXYR | B10B-JPF3MK-GKYXR | B10B-JPF3MK-GKYYR |
| Number Of Contacts | 10 | 10 | 10 | 10 |
| General Description | 8mm Pitch Press Fit Connector | 8mm Pitch Press Fit Connector | 8mm Pitch Press Fit Connector | 8mm Pitch Press Fit Connector |
| Connection Type | Factory Automation Connectors | Factory Automation Connectors | Factory Automation Connectors | Factory Automation Connectors |
| Pitch / Style | 8.00 mm | 8.00 mm | 8.00 mm | 8.00 mm |
| Rated Current (ac/dc) | 15 A | 15 A | 15 A | 15 A |
| Rated Voltage (ac/dc) | 600 V | 600 V | 600 V | 600 V |
| Pcb Mount Style | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) | Through-hole Technology (THT) |
| Remark | Secure locking device | Secure locking device | Secure locking device | Secure locking device |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Press fit contact is adopted
High reliability press fit contact is adopted. It is possible to mount without solder.
Easy PC board layout
Four kinds of keying enables to mount lots of connector on PC board. Pitch layout of connector provides designing the PC board pattern easily.
Uses the receptacle contact of J300 series
It plays the standardization by using the J300 series receptacle contact with abundant functions such as wire-to-wire, wire-to-board and common type.
EC directive 2002/95/EC (the RoHS Directive) - Compliant
