Download Datenblatt

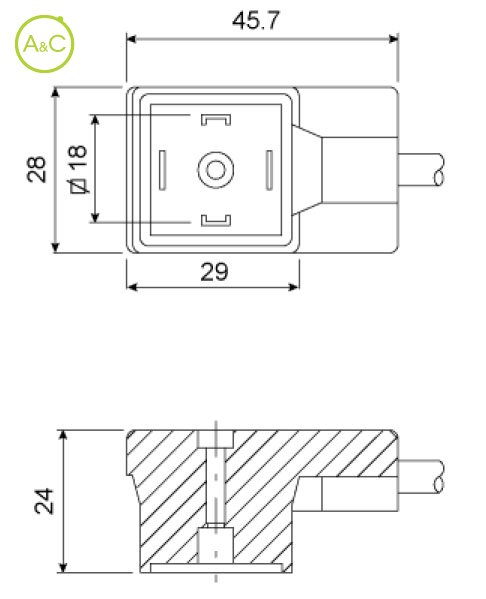

Style A square connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Shield
![Shield](https://www.ac-solutions.be/themes/default/images/arrow.png)
Housing Material
- PUR
Article Number | CA53 83A2T 507 3000 0 |
Protection Degree | IP67 |
Upper Temperature | +70 °C |
Lower Temperature | -5 °C |
Circuits | Current amplifier + yellow Led |
Housing Oil Resistance | Very good |
Housing Hardness | 90 shore A |
Other Characteristics | M3 central screw material: zinc plated iron |
Voltage Vdc | 10 to 30 |
Max. Currrent | 3 A @40°C |
Control Voltage | 10..30 Vdc |
Control Current | 1mA @ 10V 3MA @ 30V A |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
