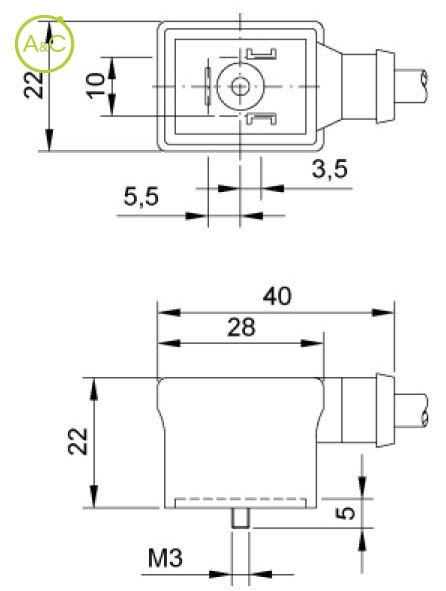

Style B rectangular connector

  • without electronic

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Housing Material

  • PUR
  • TPR
Article Number CF11 02V00 414 3000 0 CF12 02A00 414 3000 0 CF11 02A00 414 3000 0
Protection Degree IP65* IP65* IP65*
Upper Temperature +125 °C +125 °C +125 °C
Lower Temperature -40 °C -40 °C -40 °C
Contact Type Anti-vibration Fork Fork
Circuits without electronic without electronic without electronic
Housing Oil Resistance Occasional contact Occasional contact Occasional contact
Housing Hardness 73 shore A 73 shore A 73 shore A
Other Characteristics M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron M3 central screw material: zinc plated iron
Voltage Vdc 1 to 250 1 to 250 1 to 250
Voltage Vac 1 to 250 1 to 250 1 to 250
Max. Currrent 10 A @40°C 10 A @40°C 10 A @40°C
Housing Colour Black Grey Black
Remark The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
