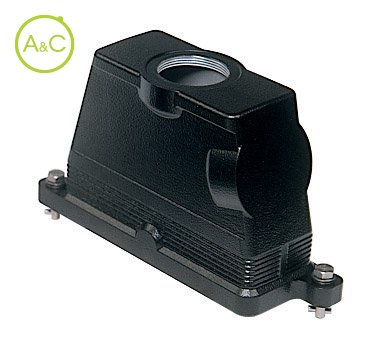

Hoods with top entry, Bayonet locking
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
Entry
- 1xPG16
- 1xPG21
- 1xPG29
Article Number | CGV 10.16 B |
Protection Degree | IP68 |
Material Housing | Aluminium |
Height | 101 mm |
Length | 146 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules;CDSH 18 P + PE |
Locking Mechanism | Bayonet |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Top entry |
Width | 58 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
