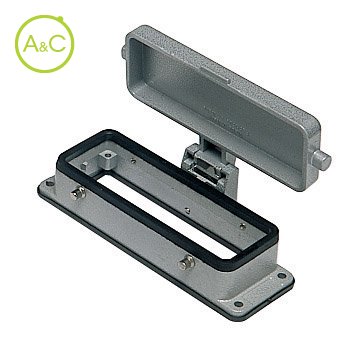

Bulkhead mounting housings
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CHI 24 CP* |
Protection Degree | IP65 |
Material Housing | Aluminium |
Height | 29 mm |
Remark | May be combined with enclosures: CHO 24 X; CAO 24 X; CHV 24 X; CAV 24 X; MHO 24 X; MAO 24 X; MHV 24 X; MAV 24 X |
Length | 142.5 |
Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 64P + PE; CT-CTS 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CT-CTSE 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE |
Inflammability Class Of Insulation Material Acc. With Ul94 | V2 |
Locking Mechanism | Double locking levers |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Below |
Width | 45.5 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
