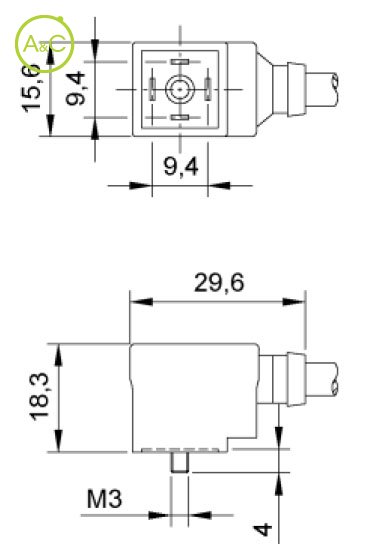

Style C-ind micro connector

Varistor

CN - CN11 04A20

CN - CN11 04A20

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Housing Material

PUR
TPR

Article Number	CN14 04A20 414 3000 0	CN14 04A40 414 3000 0	CN14 04A60 414 3000 0	CN14 04A90 414 3000 0
Protection Degree	IP65*	IP65*	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Contact Type	Fork	Fork	Fork	Fork
Circuits	Varistor	Varistor	Varistor	Varistor
Housing Oil Resistance	Very good	Very good	Very good	Very good
Housing Hardness	90 shore A	90 shore A	90 shore A	90 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	1 to 38	1 to 80	1 to 170	1 to 250
Voltage Vac	1 to 30	1 to 60	1 to 130	1 to 250
Max. Currrent	6 A @40°C	6 A @40°C	6 A @40°C	6 A @40°C
Clamping Voltage	38..104 V	80..165 V	170..340 V	320..640 V
Housing Colour	Black	Black	Black	Black
Remark	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Article Number	CN11 04A20 414 3000 0	CN11 04A40 414 3000 0	CN11 04A60 414 3000 0	CN11 04A90 414 3000 0
Protection Degree	IP65*	IP65*	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C	-40 °C	-40 °C
Contact Type	Fork	Fork	Fork	Fork
Circuits	Varistor	Varistor	Varistor	Varistor
Housing Oil Resistance	Occasional contact	Occasional contact	Occasional contact	Occasional contact
Housing Hardness	73 shore A	73 shore A	73 shore A	73 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	1 to 38	1 to 80	1 to 170	1 to 250
Voltage Vac	1 to 30	1 to 60	1 to 130	1 to 250
Max. Currrent	6 A @40°C	6 A @40°C	6 A @40°C	6 A @40°C
Clamping Voltage	38..104 V	80..165 V	170..340 V	320..640 V
Housing Colour	Black	Black	Black	Black
Remark	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
