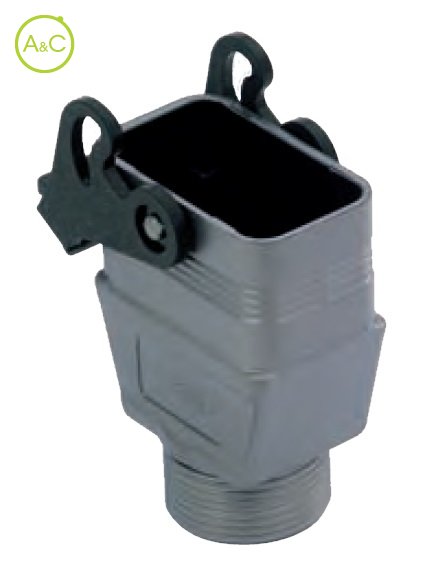

Hoods with single lever

  • Top entry
  • Plastic, 1xPG21
Download Datenblatt
  • General
Article Number CQS 08 VG
Protection Degree IP66
Material Housing Plastic
Height 65.5 mm
Remark PG male thread on enclosure exterior
Length 46
Extra Information Corrosion resistant
EMC Version
UV resistant
With interlocking device
Required Inserts CQ 08 8P+PE; CQ 04/2 4+2P+PE
Locking Mechanism Single locking lever
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry*
Width 34 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CRQ 21
Cable gland head and gasket for CQ 08 V and VG & CQS 08 V,VG and IAP enclosure
