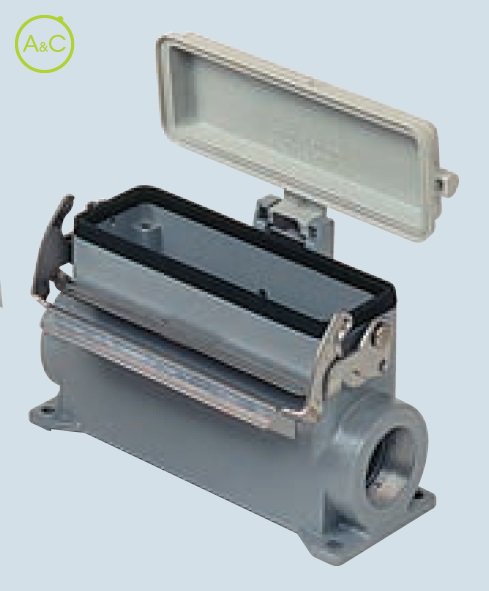

Surface mounting housings, high construction
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
Entry
- 1xPG21
- 1xPG29
- 2xPG21
- 2xPG29
Article Number | CVAP 16 LP21 |
Protection Degree | IP65 |
Material Housing | Aluminium |
Height | 77 mm |
Length | 117 |
Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE |
Locking Mechanism | Single locking lever |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Side entry |
Width | 57 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
