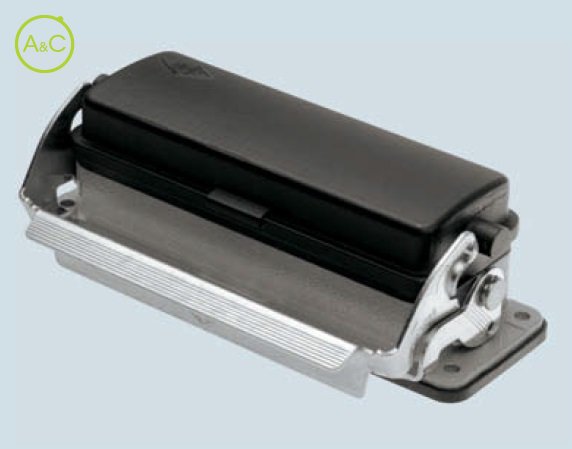

Bulkhead mounting housings
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | CVI 24 LSP |
Protection Degree | IP65 |
Material Housing | Aluminium |
Height | 45 mm |
Length | 142.5 |
Extra Information |
Corrosion resistant UV resistant With hinged lid With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 64P + PE; CT-CTS 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CT-CTSE 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules;CDSH 42 P + PE |
Locking Mechanism | Single locking lever |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | below |
Width | 45.5 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
