Socket for DDR/DDR2 S.O. DIMM

DM-200P CONNECTOR

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Operating Voltage

1.8 V
2.5 V

Article Number	DM-6D4-B2400
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Socket for DDR/DDR2 S.O.DIMM
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Surface Mount Technology (SMT)

Article Number	DM-7D4-H2400
Upper Temperature	+85 °C
Lower Temperature	-25 °C
General Description	0.6mm Pitch Socket for DDR/DDR2 S.O.DIMM
Connection Type	Printed Circuit Board Connectors
Pitch / Style	0.60 mm
Rated Current (ac/dc)	0.3 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Surface Mount Technology (SMT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

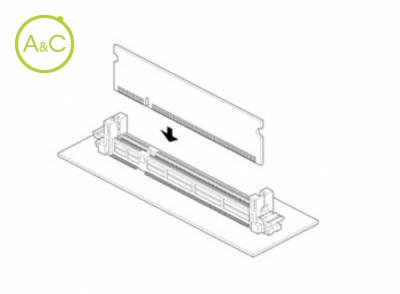

Socket for DDR/DDR2 S.O.DIMM 200 circuits complying with JEDEC (MO-224). Easy module inserting/ejecting 14.0mm height Socket for each S.O.DIMM of DDR/DDR2 is prepared. RoHS Compliant
