Receptacle Contact

JFA CONNECTOR J2000 Series

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

JST

Applicable Wire

AWG 22 to 18
AWG 24 to 20
AWG 28 to 24

Article Number	SJ2F-21GF-P1.0
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Applicable Wire Size	0.30 to 0.75 (AWG #22 to #18) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	4.6 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	SJ2F-01GF-P1.0
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Applicable Wire Size	0.20 to 0.50 (AWG #24 to #20) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	4.6 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	SJ2F-002GF-P1.0
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.5mm Pitch Disconnectable Crimp Style (Wire to Board)
Applicable Wire Size	0.08 to 0.20 (AWG #28 to #24) mm²
Connection Type	Factory Automation Connectors
Pitch / Style	2.50 mm
Rated Current (ac/dc)	4.6 A
Rated Voltage (ac/dc)	250 V
Pcb Mount Style	Through-hole Technology (THT)

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

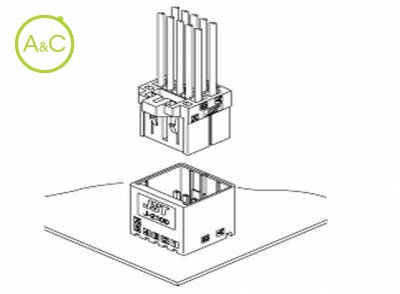

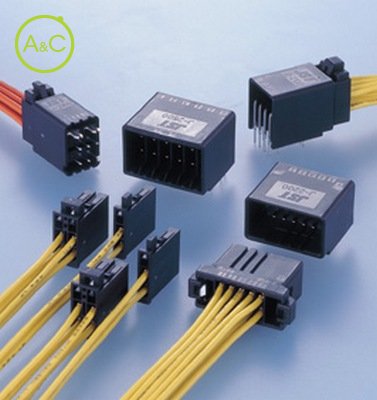

2.5mm (.098") pitch double-row connector for miniaturization of electronic equipment. Both center locking and side locking can be properly used according to a use. Receptacle contacts are designed to be common with all JFA connector J2000 series. Double-spring construction Double-spring construction realizes stable contact performance. In addition, the length of contact is shortened to miniaturize connector. Two kinds of locking method "Center locking" realizes high-density mounting PC board, and "side locking" utilizes height direction of PC board. Housing lance Housing lance assures stable assembly and smooth insertion even in thin wire. Clear "click feeling" Clear feeling of click when mating connector can be realized, secure engagement. Standards UL Recognized E60389 RoHS Compliant
