Steckverbinder
Zurück zur Projektübersicht
Download Datenblatt
Download Datei

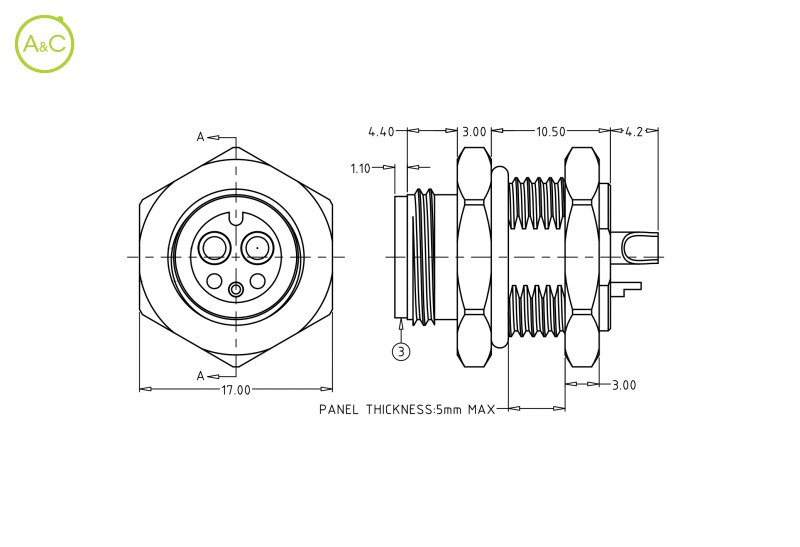

Female panel mount connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Higo
![Higo](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 5 (2+3)
Article Number | L513AM C 02 00 0000 |
Color | Black |
Connector Diameter | 13 mm |
Protection Degree | IP67 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Phosphor bronze |
Remark | Other cable length/type on request |
Rated Current | 20 / 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Contact Type | Solder cup contacts |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
