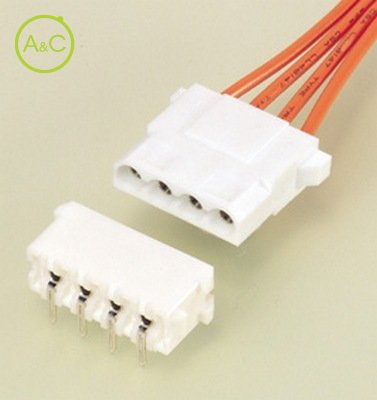

Housing for LC Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 4
Article Number | LCP-04 |
Number Of Contacts | 4 |
Upper Temperature | +90 °C |
Lower Temperature | -25 °C |
General Description | 5.08mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 5.08 mm |
Rated Current (ac/dc) | 7.0 A |
Rated Voltage (ac/dc) | 250 V |
Pcb Mount Style | Through-hole Technology (THT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
This reliable, low cost connector is suited for bringing power to printed circuit boards in office automation equipment.
A major application has been in secondary power supply circuits of floppy disk drives.
Anti-misinsertion feature

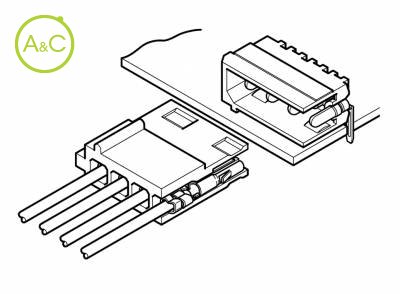

The plug and header are polarized, thus preventing misinsertion of the connector.
Self-locking housing clamp
The self-locking housing clamp for the header ensures easy handling and sturdy mounting.
Two kinds of headers
Types A and B headers are available to match the mounting direction of your printed circuit boards.
Two-wire crimp style contact
Two-wire crimp contacts which facilitate branch connections and internal jumpering are available.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
