Housing for LEA Connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
Article Number | LEAR-02V-S |
Number Of Contacts | 2 |
Upper Temperature | +105 °C |
Lower Temperature | -55 °C |
General Description | LED Connectors (1.8mm Pitch Disconnectable Crimp Style) |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.80 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 300 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

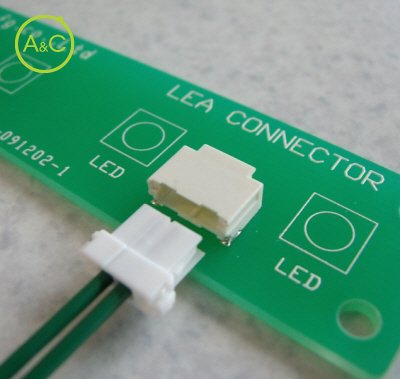

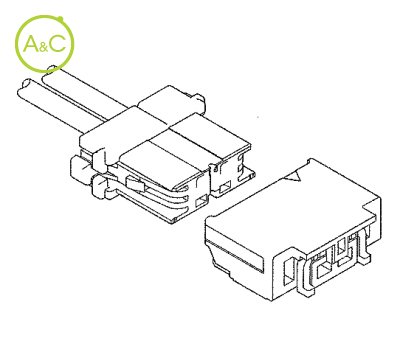

LED Connectors - The LEA Connector is a low profile, surface mount (SMT), LED Connector to be used in LED light strips, LED light controls and other general lighting and LED applications.
This is a diSConnectable type LED Connector with a secure locking connection which incorporates a space saving and low profile design for your LED circuit board.
This LED Connector is available in 2 circuits with a 3A / 300V current and voltage rating.
LED Connector
Secure locking mechanism
Low Profile design
Countermeasure for inverse insertion
Contact lance
RoHS Compliant
