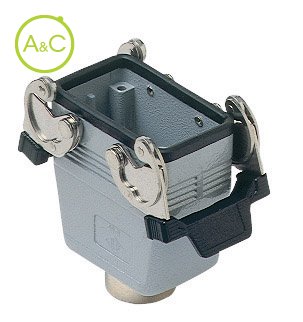

Hoods with 2 levers and gasket, high construction

  • Top entry
  • Aluminium, Metric entry
Download Datenblatt

Entry

  • 1xM25
  • 1xM32
Article Number MAV 10 G25
Protection Degree IP66
Material Housing Aluminium
Height 91 mm
Length 73
Extra Information Corrosion resistant
UV resistant
With interlocking device
Coating Housing With powder coating
Required Inserts CDD 42 P + PE; CDS 18 P + PE; CSH 10 P + PE; CNE-CSE 10 P + PE; CCE 10 P + PE; CSS 10 P + PE; CQE 18 P + PE; CMCE 3+2 P + PE; CMSH 3+2 P + PE; CX 8/24 P + PE; Mixo 3 modules; CDSH 18 P + PE
Locking Mechanism Double locking levers
Operation Lower Temperature -40 °C
Operation Upper Temperature 125 °C
Position Cable Feed Top entry
Width 59 mm
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Zubehör
CHC 10
Covers with 4 pegs
CHC 10 S
Covers with 4 pegs
