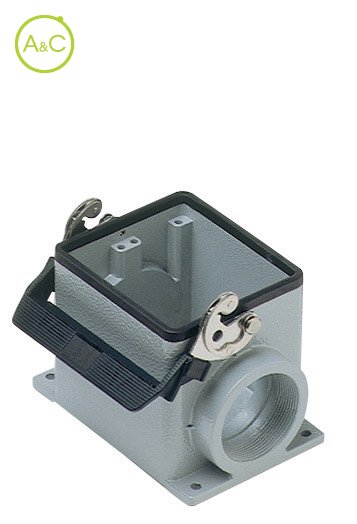

Surface mounting housings
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Ilme
![Ilme](https://www.ac-solutions.be/themes/default/images/arrow.png)
Entry
- 1xM40
- 1xM50
- 2xM40
- 2xM50
Article Number | MHP 32 L40 |
Protection Degree | IP66 |
Material Housing | Aluminium |
Height | 90 mm |
Length | 125 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE |
Locking Mechanism | Single locking lever |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Side entry |
Width | 84 mm |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
