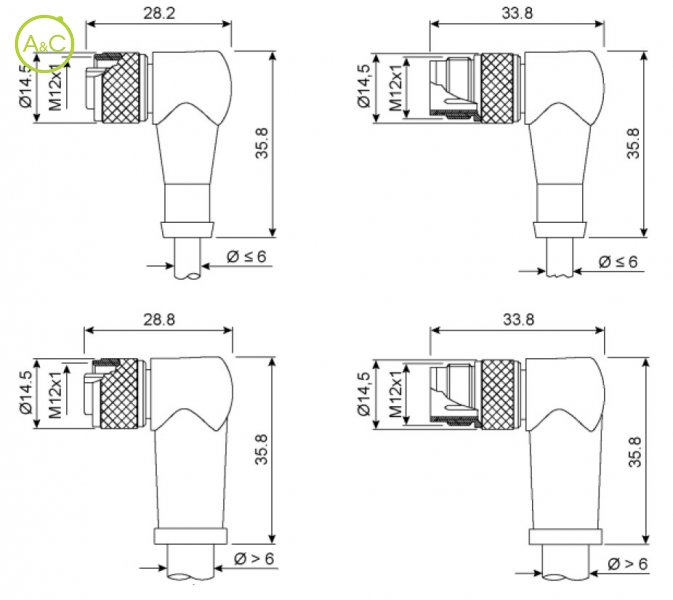

Female round connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Shield
Shield
Number Of Poles
- 4
| Article Number | RDMF 06200 302 3000 |
| Number Of Contacts | 4 |
| Protection Degree | IP65* |
| Upper Temperature | +70 °C |
| Lower Temperature | -40 °C |
| Housing Material | TPU |
| Circuits | NPN |
| Housing Oil Resistance | Very good |
| Contact Material | Golden over nickel plated CuZn |
| Locking Nut Material | Brass nickel plated |
| Voltage Vdc | 1 to 30 |
| Max. Currrent | 4 A @40°C |
| Housing Colour | Transparent |
| Contact Gender | F |
| Ground Pole | No |
| Max. Number Wires | 4 |
| Wire Colour | bn1, wh2, bu3, bk4 |
| Coding | A |
| Remark | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
