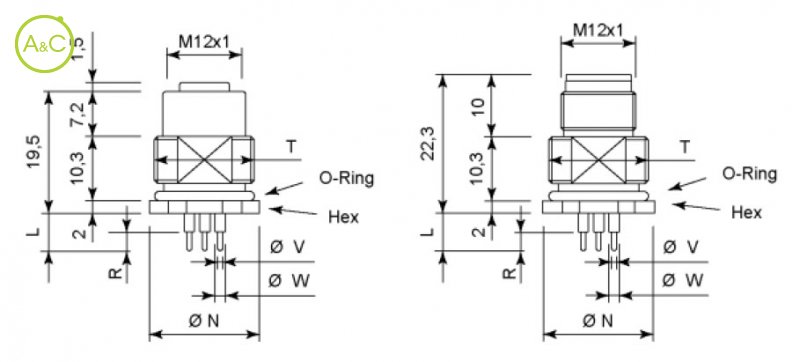

Male round receptacle
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Shield
Shield
Number Of Poles
- 4
- 5
- 8
- 12
| Article Number | RDSM 00400 000 W000 000 |
| Number Of Contacts | 4 |
| Protection Degree | IP67 (only frontal side)* |
| Upper Temperature | +80 °C |
| Lower Temperature | -40 °C |
| Fixing Thread | M16 |
| Housing Material | Nickel plated brass |
| Contact Material | Golden over nickel plated CuZn |
| Voltage Vdc | 1 to 250 |
| Voltage Vac | 1 to 250 |
| Max. Currrent | 4 A @40°C |
| Contact Gender | M |
| Coding | A |
| Remark | The protection degree level is guaranteed only when correctly assembled with Shield's couterpart |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
