Steckverbinder
Zurück zur Projektübersicht

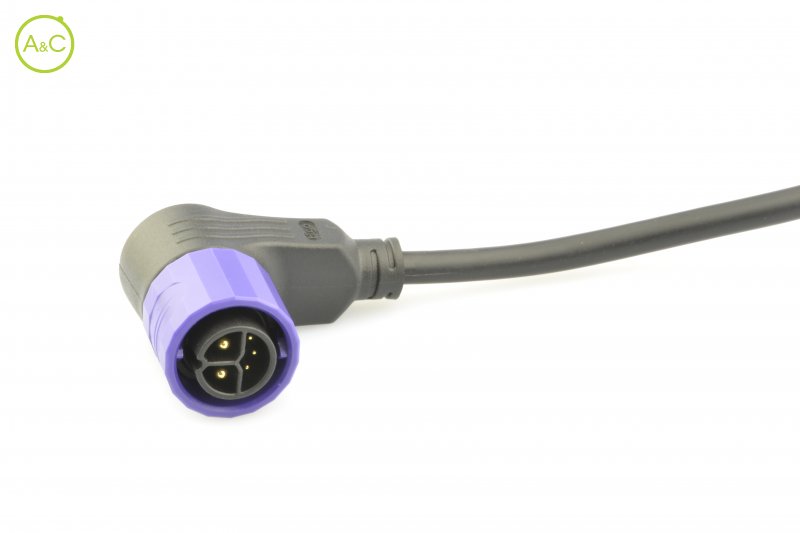

Male angled plug connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Higo
![Higo](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 5 (2+3)
Article Number | S526AG A 00 B0 1000 |
Color | Black/Purple |
Connector Diameter | 23.4 mm |
Wire Section | 2 x 2,0 + 3 x 0,2 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 3000 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Copper alloy |
Cable Diameter | 6 mm |
Insulation Wire | Teflon |
Remark | Other cable length/type on request |
Rated Current | 25 / 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold plated |
Fitting Length | 40 mm |
Material Jacket | PVC |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
