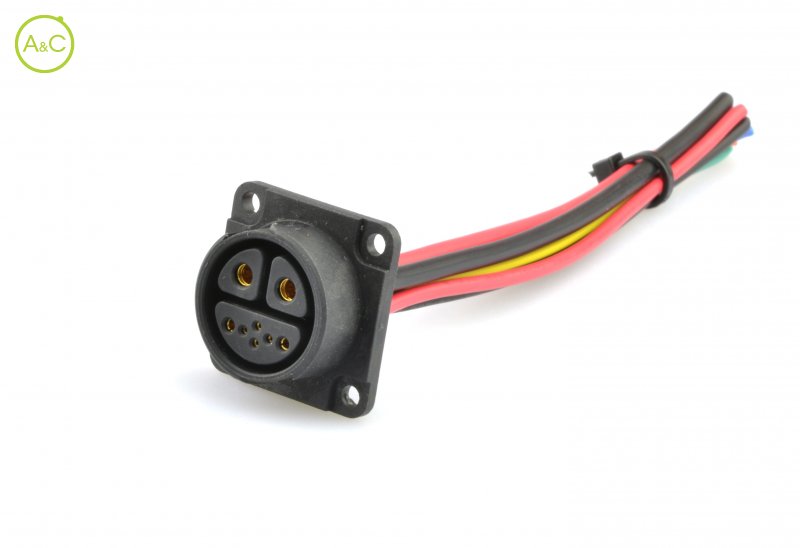

Female panel mount connector, self-locking
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Higo
Higo
Number Of Poles
- 8 (2+2+4)
| Article Number | S828AM C 03 FN 0300 |
| Color | Black |

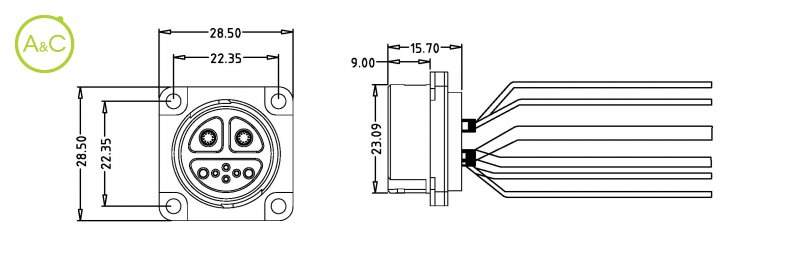

| Connector Diameter | 28.5 mm |
| Wire Section | 2 x 2,5 + 2 x 1,3 + 4 x 0,2 mm² |
| Cable Length | 300 mm |
| Protection Degree | IP67 |
| Mating Cycles | 3000 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Phosphor Bronze |
| Remark | Other cable length/type on request |
| Rated Current | 25 / 10 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
