Female Connector for SAC Connector

  • SAC CONNECTOR
Download Datenblatt

Number Of Poles

  • 4
Article Number SACWPB-04-K
Number Of Contacts 4
Upper Temperature +125 °C
Lower Temperature -40 °C
General Description Sealed Connector
Connection Type Automotive
Pitch / Style 2.54 mm
Rated Current (ac/dc) 5 A
Rated Voltage (ac/dc) 14 V
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

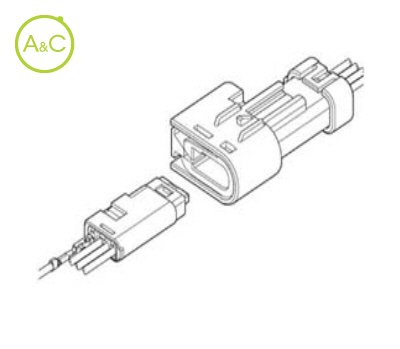

Miniaturized 0.64mm sealed wire-to-wire connector for automotive application. Ultra miniaturized 0.64 sealed female connector for extremely tight packaging conditions RoHS Compliant
