Pin Contact
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Applicable Wire
- AWG 28 to 24
| Article Number | SBHSM-002T-P0.5 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |

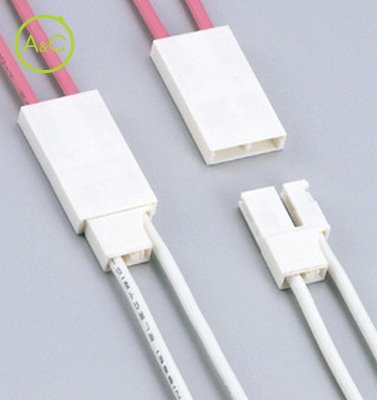

| General Description | 5.1mm Pitch Disconnectable Crimp Style (Wire to Wire) |
| Applicable Wire Size | 0.08 to 0.22 (AWG 28 to 24) mm² |
| Connection Type | Wire to Wire Connectors |
| Pitch / Style | 5.10 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 1,5 V |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
Connector for liquid crystal display back light lamps.
High voltage
With enough creep distance at the high voltage side, voltage rating can be as high as 1,500V.

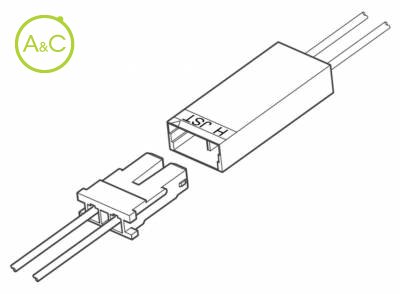

Applicable either to wire-to-wire connection or board-to-wire connection
Socket housing is commonly used for wire-to-wire version and for board-to-wire version BHT series. Pin contact is the same as that for the wire-to-wire BHS connector.
Standards
UL Recognized E60389
CSA Certified LR20812
RoHS Compliant
