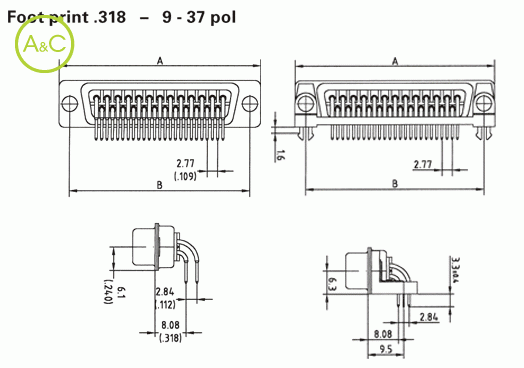

Dip solder version 90°
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Provertha
![Provertha](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 9
- 15
- 25
- 37
Article Number | SDT 09 568 G.R4B** | ST 09 668 G.R4B** |
Number Of Contacts | 9 | 9 |
Upper Temperature | + 125 °C | + 125 °C |
Lower Temperature | -55 °C | -55 °C |
Contact Plating | Gold over Nickel, or selective gold | Gold over Nickel, or selective gold |
Contact Material | Brass and Copper alloy | Brass and Copper alloy |
Remark | For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 | For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 |
Remark * | For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0 | For M3 thread please replace the number 4 of the article number by the number 3 For through hole 3,1 mm please replace the number 4 of the article number by the number 0 |
Test Voltage | 1 V ~ | 1 V ~ |
Insulation Resistance | 1010 MΩ | 1010 MΩ |
Current Rating | 5 | 5 |
Contact Resistance | ≤ 10 m | ≤ 10 m |
Gender | Male | Female |
Insulator Material | Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated | Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated |
Shell | Steel, tin-plated | Steel, tin-plated |
Mating And Unimating Force | 0.3 - 0.7 | 0.3 - 0.7 |
Air And Creepage Distance | ≥ 0.9 mm, VDE 0110 rated | ≥ 0.9 mm, VDE 0110 rated |
Termination Type | Dip solder 90° | Dip solder 90° |
Quality Class* | Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles | Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
