Side Entry Shrouded Header (SMT)
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
JST
Number Of Poles
- 2
| Article Number | SM02-BDAS-3-TB |
| Number Of Contacts | 2 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 13.0mm Pitch Disconnectable Crimp Style |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 13.00 mm |
| Rated Current (ac/dc) | 1.0 A |
| Rated Voltage (ac/dc) | 3 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
| Remark | Secure locking device |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

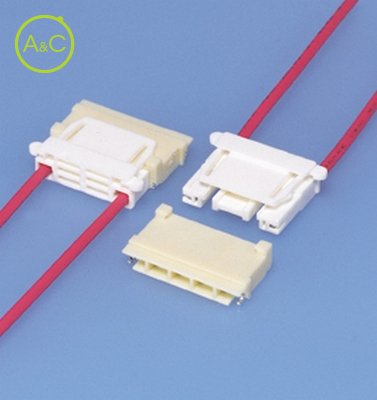

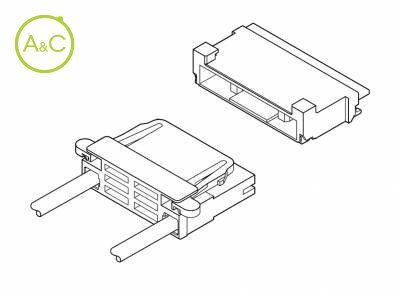

Originally designed for the power supply of large LCD's (liquid crystal displays) backlight applications, this 13mm pitch connector is considered very compact for a 3,000V rated connector.
Also, as with the 3.5mm pitch BD connector, this connector incorporates a unique locking feature, which makes it ideal for demanding applications.
Secure locking mechanism
This mechanism prevents from coming off housing when handling the wire harness or applying vibration to connector.
Space saving
Adopting locking part on the connector, space saving for connector pitch direction is realized and releasing lock is easy.
High withstand voltage design
This connector designed for higher voltage proof than our BHS connector. Voltage rating is 3,000V and withstanding voltage is 5,000V.
Crimping special wire
Crimping contact is suitable for special soft high voltage-proof type wire e.g. silicone rubber insulated wire, due to low wire insertion force and easy mating connector.
Standards
UL Recognized E60389
RoHS Compliant
