Schrouded Header SMT Side entry type
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 3
Article Number | SM03B-GVHS-TB |
Number Of Contacts | 3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 1.25mm Pitch Disconnectable Crimp Style |
Connection Type | Printed Circuit Board Connectors |
Pitch / Style | 1.25 mm |
Rated Current (ac/dc) | 1.0 A |
Rated Voltage (ac/dc) | 50 V |
Pcb Mount Style | Surface Mount Technology (SMT) |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich

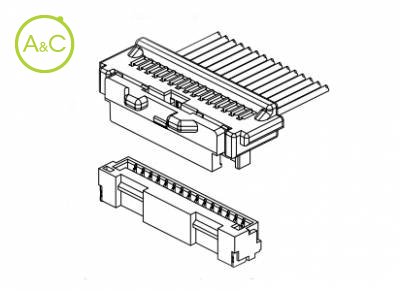

This connector can be mounted on the same PC board layout as the GH connector and has the sucking area on the top of the connector without suction tape.
Secure locking structure
Prevention of contact deformation
Sucking area
RoHS Compliant
