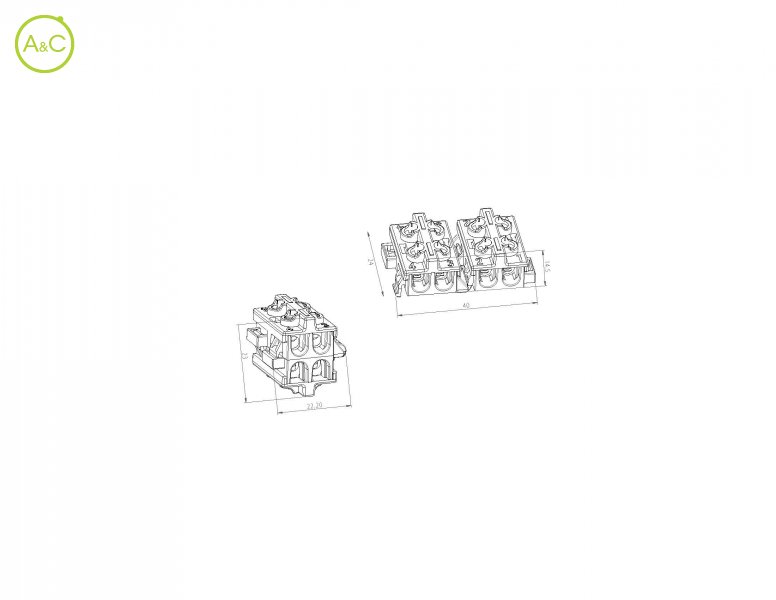

Compact round terminal block with hinge

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Number Of Poles

  • 4
Article Number THB.033.A4A THP.033.A4A THB.033.A4C THP.033.A4C
Number Of Contacts 4 4 4 4
Protection Degree IP00 IP00 IP00 IP00
Upper Temperature +125 °C +125 °C +125 °C +125 °C
Lower Temperature -40 °C -40 °C -40 °C -40 °C
Rated Voltage 450 450 450 450
Rated Current 32 A 17.5 A 24 A 17.5 A
Contact Terminal End barrier contact Piercing clip terminals max 1,5 mm² WP contact for cable section < 1,0 mm² Piercing clip terminals max 1,5 mm²
Terminals Screw Piercing Screw Piercing
Cable Section max 4,0 mm² max 4,0 mm² max 2,5 mm² max 2,5 mm²
T Marking T125 °C T125 °C T125 °C T125 °C
Tracking Index PTI 250 PTI 250 PTI 250 PTI 250
Terminal Block Housing PA66 GF UL94 V0 GWT 960°C black PA66 GF UL94 V0 GWT 960°C black PA66 GF UL94 V0 GWT 960°C black PA66 GF UL94 V0 GWT 960°C black
Contact Screw Terminals Brass nickel plated Brass nickel plated Brass nickel plated Brass nickel plated
Screw M3 steel zinc plated M3 steel zinc brass plated M3 steel zinc plated M3 steel zinc brass plated
Standards EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005 EN60998-1:2005 EN60998-2-1:2005 EN60998-2-3:2005
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
