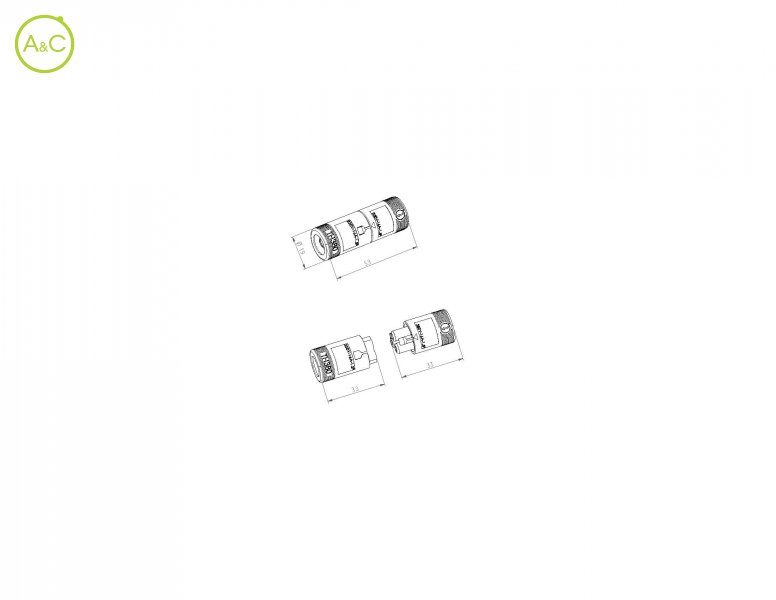

Insert IP 20 protection Plug

Haben Sie Fragen zu diesem Produkt?

Download Datenblatt

Weitere Informationen über diese Marke:

Article Number	THB.380.A2A	THP.380.A2A
Number Of Contacts	2	2
Protection Degree	IP20	IP20
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	400	400
Pollution Degree	2	2
Rated Current	25 A	17.5 A
Contact Terminal	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²
Min-max Cable Diameter	max 10 mm	max 10 mm
T Marking	T85 °C	T85 °C
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C	PA66 GF UL94 V0 GWT 960°C
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.380.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.380.XXX.AG)
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN61984:2001	EN61984:2001
Note	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.

Article Number	THB.380.A1A	THP.380.A1A
Number Of Contacts	3	3
Protection Degree	IP20	IP20
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-40 °C	-40 °C
Rated Voltage	400	400
Pollution Degree	2	2
Rated Current	25 A	17.5 A
Contact Terminal	Contact screw terminals. For cable section < 1.0 mm²	Piercing clip terminals max 1,5 mm²
Terminals	Screw	Piercing
Cable Section	max 4,0 mm²	0,5 - 1,5 mm²
Min-max Cable Diameter	max 10 mm	max 10 mm
T Marking	T85 °C	T85 °C
Impulse Withstand Category	II	II
Impulse Withstand Voltage	4 kV	4 kV
Tracking Index	PTI 175	PTI 175
Connector Housing	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035	PA66 UL94 V0/V2 GWT 850°C black - grey RAL 7035
Terminal Block Housing	PA66 GF UL94 V0 GWT 960°C	PA66 GF UL94 V0 GWT 960°C
Contact Screw Terminals	Brass nickel plated OR Brass silver plated (THX.380.XXX.AG)	Brass nickel plated OR Brass silver plated (THX.380.XXX.AG)
Standard / Piercing Screws	M3 steel zinc plated	M3 steel zinc brass plated
Standards	EN61984:2001	EN61984:2001
Note	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.	Every connector housing type can be equipped with male or female contacts. For reasons pertaining to safety, only female contacts may be used in the live part of the connector.

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
