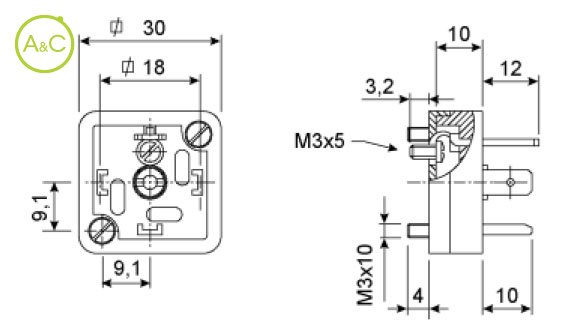

Style A square receptacle connector

With 2 screws

VP-VR-VT-VU - VP11 02A0S

VP-VR-VT-VU - VP11 02A0S

Haben Sie Fragen zu diesem Produkt?

Kontaktieren Sie unseren Steckverbinderspezialist

Schick mir ein individuelles Angebot

Download Datenblatt

Weitere Informationen über diese Marke:

Number Of Poles

2+G
3+G

Article Number	VP11 02A0S
Number Of Contacts	2+G
Protection Degree	IP65
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Housing Material	PA66 30%GF
Housing Oil Resistance	Occasional contact
Contact Material	Nickel plated CuZn
Max. Wire Section	1 mm²
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	10 A @40°C
Included Accessories	2 screws M3x10 1 screw M3x5 1 unloosable gasket

Article Number	VP11 03A0S
Number Of Contacts	3+G
Protection Degree	IP65
Upper Temperature	+125 °C
Lower Temperature	-40 °C
Housing Material	PA66 30%GF
Housing Oil Resistance	Occasional contact
Contact Material	Nickel plated CuZn
Max. Wire Section	1 mm²
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	10 A @40°C
Included Accessories	2 screws M3x10 1 screw M3x5 1 unloosable gasket

Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
