Steckverbinder
Zurück zur Projektübersicht

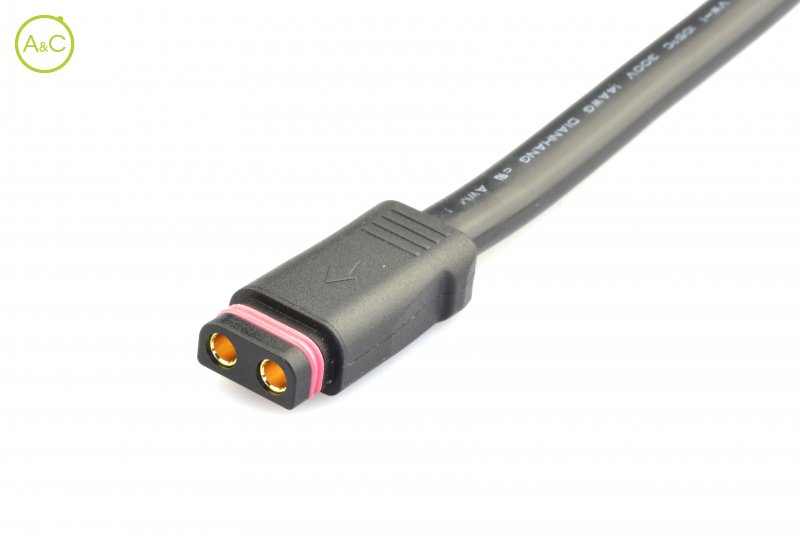

Female cable connector
Haben Sie Fragen zu diesem Produkt?
Weitere Informationen über diese Marke:
Higo
![Higo](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
Article Number | Z216AMP 00 FD 0000 |
Color | Black |

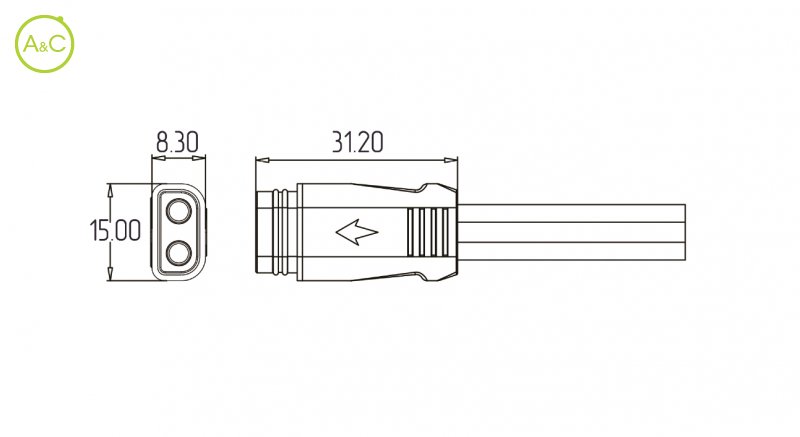

Connector Diameter | 15,0 x 8,3 mm |
Wire Section | 2.5 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Copper Alloy |
Cable Diameter | 8x5 mm |
Insulation Wire | PVC |
Remark | Other cable length/type on request |
Rated Current | 25 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Fitting Length | 51 mm |
Material Jacket | PVC |
Die Merkmale zwischen Varianten und Subvarianten sind unterschiedlich
