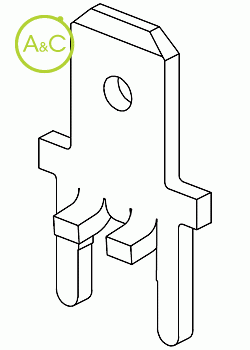

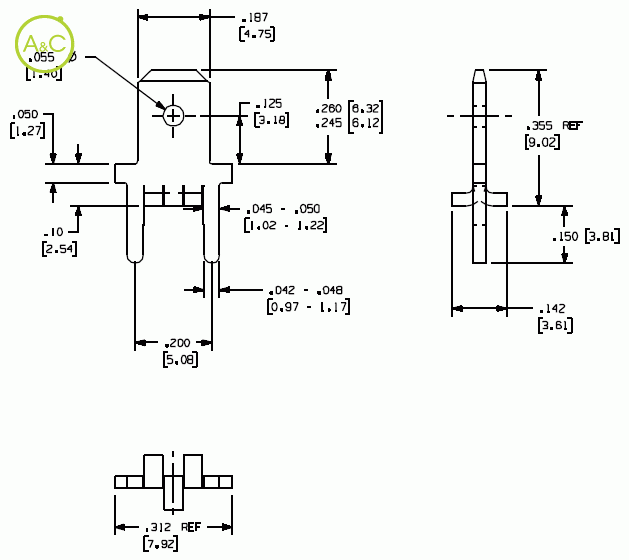

0.187" (4.75mm) Tabs / Quick Disconnect Terminals
Do you have any questions about this product?
More info on this brand:
Zierick
Zierick
- General
| Article Number | 6291 |
| Packaging | Reeled |
| Extra Description | Straight, 12.83 mm high |
| Hole Dimension | 0.055" (1.408mm) hole |
| Material Thickness / Type | 0.032" (0.81mm) C26000 Brass |
| Standard Finish | 100% Tin over Copper |
| Current Rating Ul | 25 Amperes |
| Current Rating C-ul | 25 Amperes |
| Ul File Number | E146208 |
| Feeder/applicator System | Surf-Shooter SMT ™ Continuous Strip Feeder Model 9700 Model 9700 XY |
| Pieces Per Reel (reeled Part No.) | 2500 |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
