Back to product overview
Download product sheet

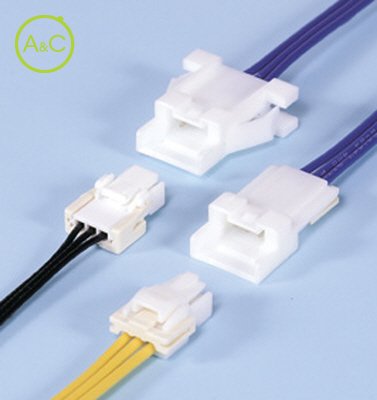

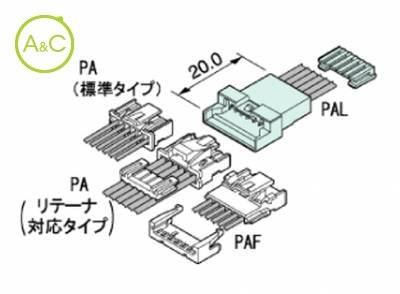

Receptacle 2 to 16 contacts
- PAL CONNECTOR
Do you have any questions about this product?
More info on this brand:
JST
![JST](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
- 3
- 4
- 5
- 6
- 7
- 8
- 9
- 10
- 11
- 12
- 13
- 14
- 15
- 16
Article Number | 02PAF-6S |
Number Of Contacts | 2 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 03PAF-6S |
Number Of Contacts | 3 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 04PAF-6S |
Number Of Contacts | 4 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 05PAF-6S |
Number Of Contacts | 5 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 06PAF-6S |
Number Of Contacts | 6 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 07PAF-6S |
Number Of Contacts | 7 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 08PAF-6S |
Number Of Contacts | 8 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 09PAF-6S |
Number Of Contacts | 9 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 10PAF-6S |
Number Of Contacts | 10 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 11PAF-6S |
Number Of Contacts | 11 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 12PAF-6S |
Number Of Contacts | 12 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 13PAF-6S |
Number Of Contacts | 13 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 14PAF-6S |
Number Of Contacts | 14 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 15PAF-6S |
Number Of Contacts | 15 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Article Number | 16PAF-6S |
Number Of Contacts | 16 |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
General Description | 2mm Pitch Disconnectable Crimp Style (Wire to Wire) |
Connection Type | Wire to Wire Connectors |
Pitch / Style | 2.00 mm |
Rated Current (ac/dc) | 3 A |
Rated Voltage (ac/dc) | 100 V |
Remark* | Secure locking device |
Characteristics differ between variants of a connector
