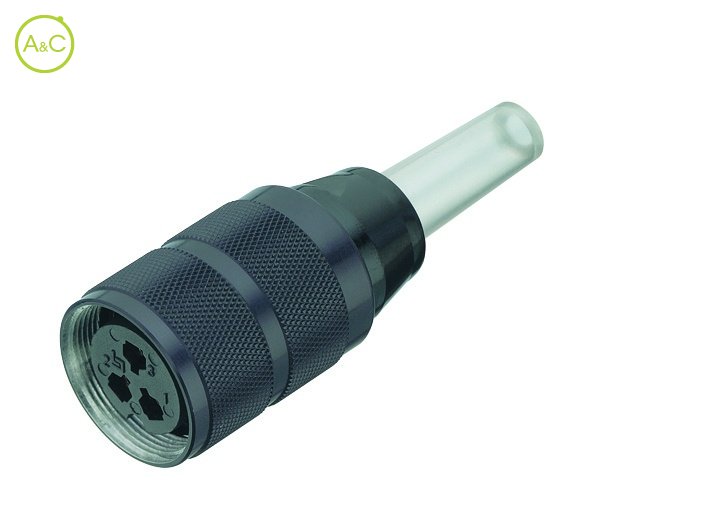

Female cable connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 3
- 5
- 7
- 12
| Article Number | 09 0034 00 03 |

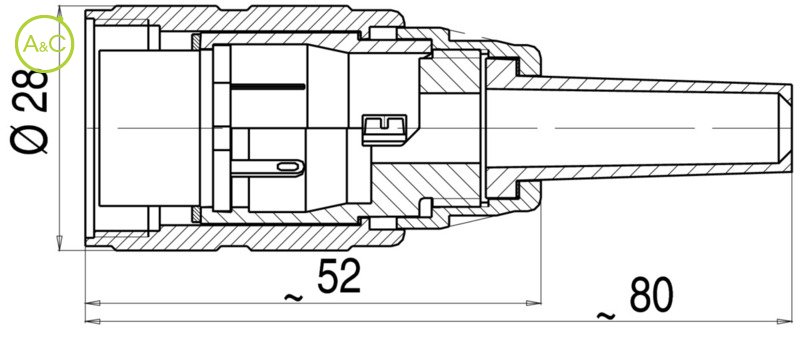

| Connector Diameter | 28 mm |
| Number Of Contacts | 3 contacts |
| Connector Locking System | Screw (M25) |
| Termination | Solder |
| Wire Section | 1.5 mm² |
| Protection Degree | IP40 |
| Mating Cycles | >500 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 250 |
| Rated Impuls Voltage | 2500 V |
| Pollution Degree | 1 |
| Overvoltage Categorie | II |
| Material Group | III |
| Rated Current (40°) | 10 A |
| Max. Contact Resistance | 5 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Ag (Silver) |
| Material Of Insert | PBT (UL 94 V-0) |
| Material Of Housing | GD-Al (anodized) |
| Cable Outlet | 5-8 mm |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
