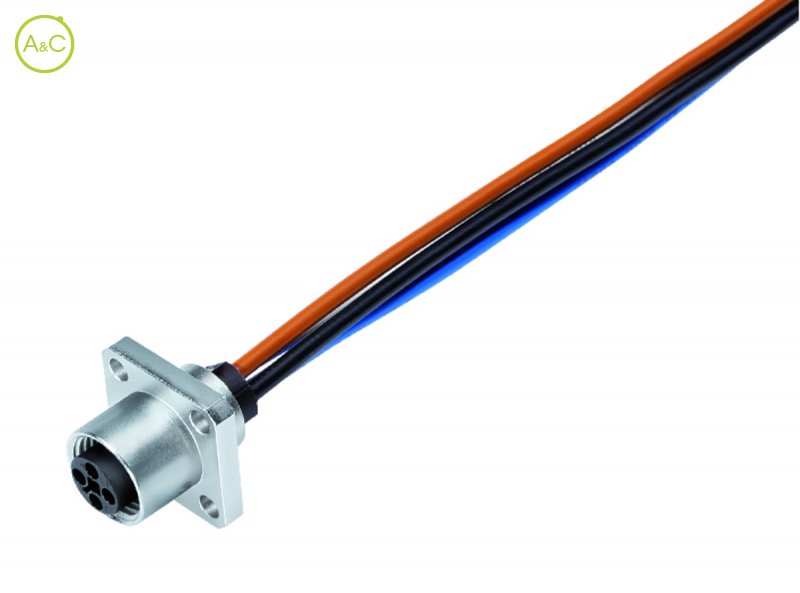

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 4
| Article Number | 09 0632 070 04 |
| Number Of Contacts | 4 contacts |
| Connector Locking System | Screw (M12-T) |
| Termination | Single wires |
| Protection Degree | IP67 |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 63 |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | III |
| Material Group | III |
| Rated Current (40°) | 12 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
