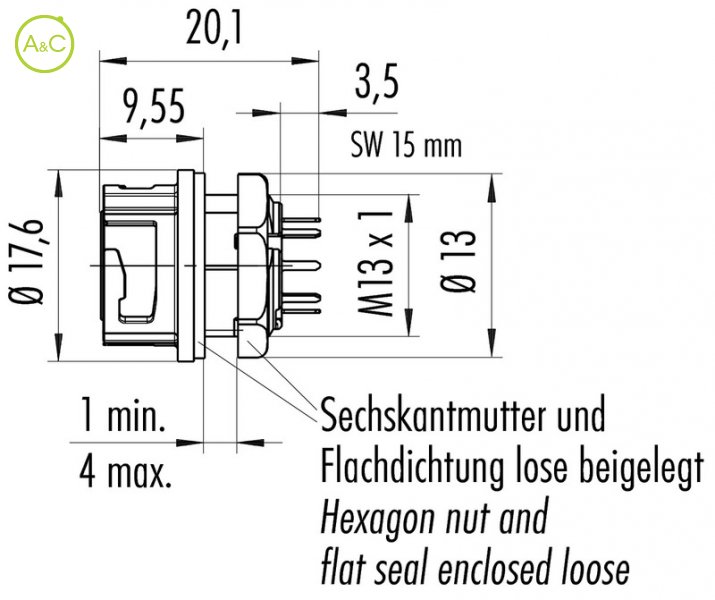

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 8
Article Number | 09 0774 090 08 |
Connector Diameter | 17.6 mm |
Number Of Contacts | 8 contacts |
Connector Locking System | Bayonet |
Termination | Dip solder |
Wire Section | 0.25 mm² |
Protection Degree | IP67 (also when not connected) |
Mating Cycles | >5000 times |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
Rated Voltage | 175 |
Rated Impuls Voltage | 1750 V |
Pollution Degree | 2 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 2 A |
Max. Contact Resistance | 15 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PA (UL 94 V-0) |
Material Of Housing | PA (UL 94 H-B) |
Product sheet | Download product sheet |
Characteristics differ between variants of a connector
