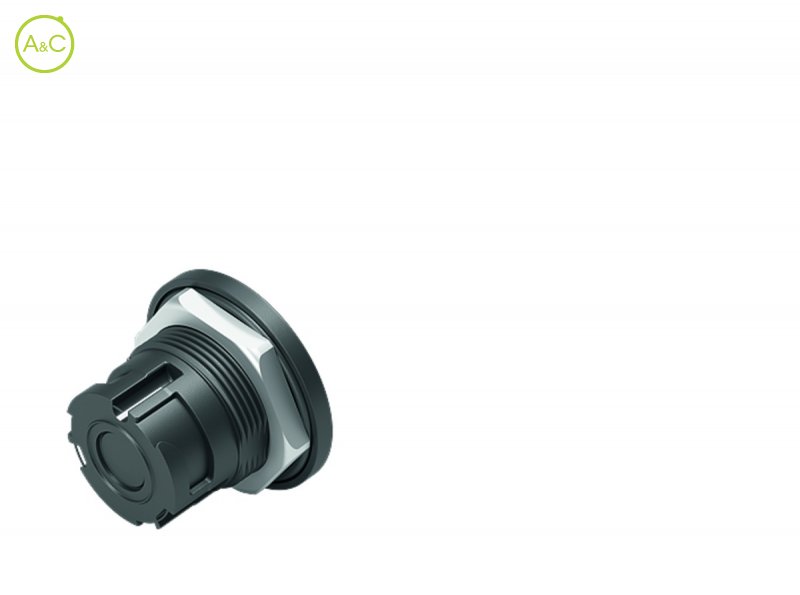

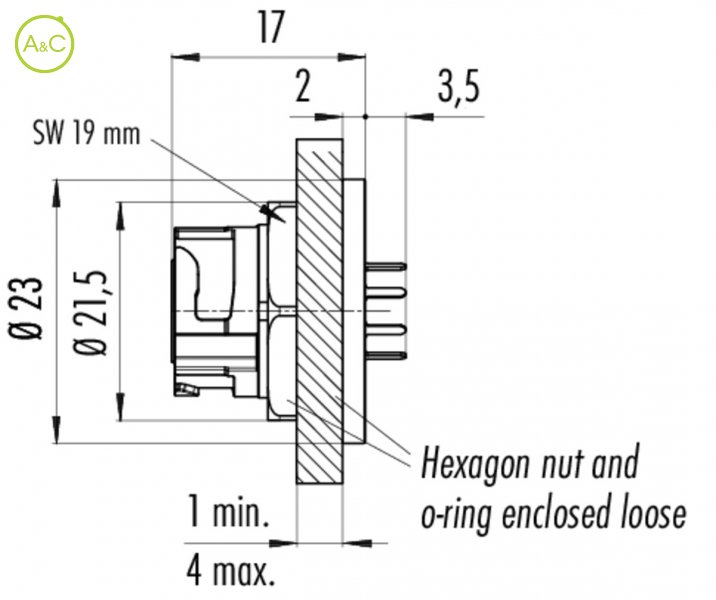

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
Binder
Number Of Poles
- 8
| Article Number | 09 0774 190 08 |
| Connector Diameter | 23 mm |
| Number Of Contacts | 8 contacts |
| Connector Locking System | Bayonet |
| Termination | Dip solder |
| Protection Degree | IP 67 (also when not connected |
| Mating Cycles | >5000 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 175 |
| Rated Impuls Voltage | 1750 V |
| Pollution Degree | 2 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 2 A |
| Material Of Contact | CuSn (Bronze) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | PA |
| Product sheet | Download product sheet |
Characteristics differ between variants of a connector
