Connectors
Back to product overview

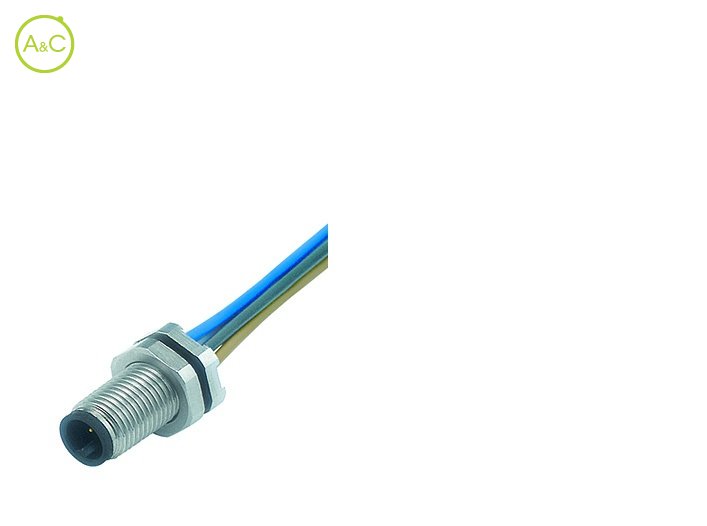

Male panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 3
- 4
Article Number | 09 3105 86 03 |
Number Of Contacts | 3 contacts |
Connector Locking System | Screw (M5) |
Termination | Assembled with single wires |
Wire Section | 0.14 mm² |
Protection Degree | IP67 |
Mating Cycles | >100 times |
Upper Temperature | +80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 60 |
Rated Impuls Voltage | 800 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | I |
Rated Current (40°) | 1 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Au (Gold) |
Material Of Insert | PA |
Material Of Housing | CuZn (Brass nickel plated) |
Cable Diameter | 3,1 mm |
Cable Jacket Material | PUR |
Insulation Wire | PVC |
Product sheet | Download product sheet |
Characteristics differ between variants of a connector
