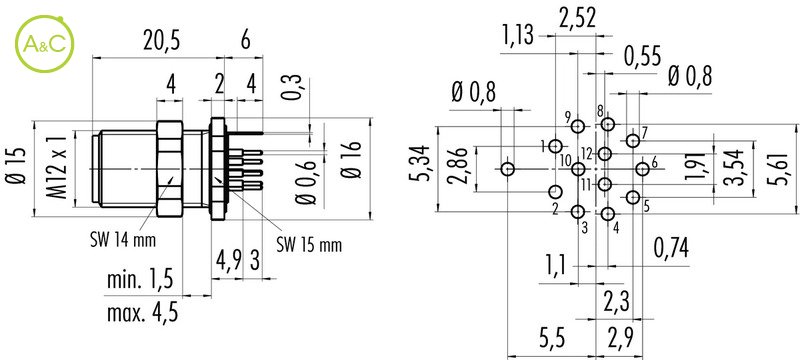

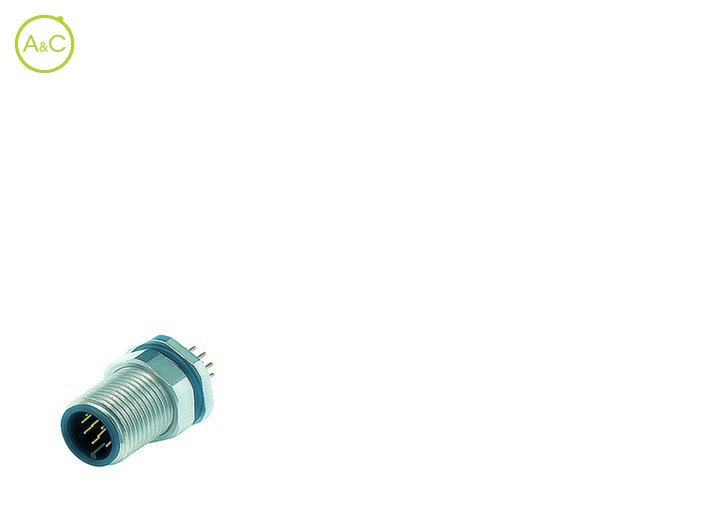

Male panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 12
- 12 (with shielding sheet)
Article Number | 09 3491 969 12 |
Connector Diameter | 16 mm |
Number Of Contacts | 12 contacts |
Connector Locking System | Screw (M12-A) |
Termination | Dip solder |
Protection Degree | IP68 |
Mating Cycles | >50 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 30 |
Rated Impuls Voltage | 500 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 2 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Au (Gold) |
Material Of Insert | PA |
Material Of Housing | Brass nickel plated |
Fixing Thread | M12 x 1 |
Product sheet | Download product sheet |
Characteristics differ between variants of a connector
