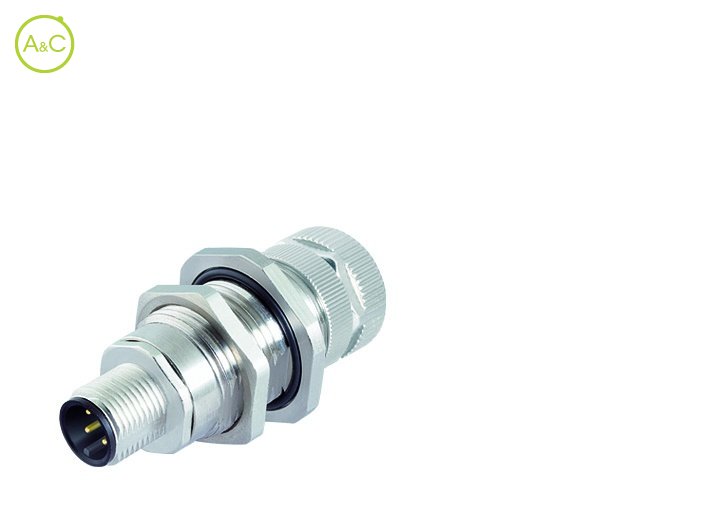

Adapter

  • Lead-through for control cabinet, shielded

Number Of Poles

  • 4
Article Number 09 5242 00 04

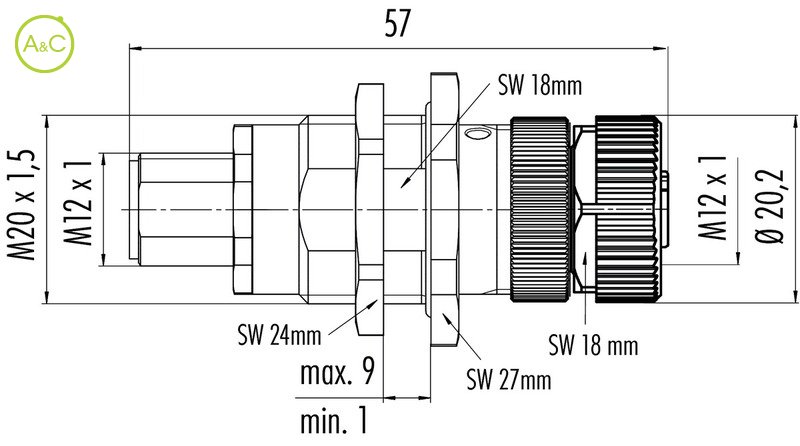

Connector Diameter 20.2 mm
Number Of Contacts 4 contacts
Connector Locking System Screw (M12-B)
Protection Degree IP67
Mating Cycles >100 times
Upper Temperature +85 °C
Lower Temperature -40 °C
Rated Voltage 250
Rated Impuls Voltage 2500 V
Pollution Degree 3
Overvoltage Categorie II
Material Group III
Rated Current (40°) 4 A
Max. Contact Resistance 3 mΩ
Material Of Contact CuZn (Brass)
Plating Au (Gold)
Material Of Insert PA (UL 94 HB)
Material Of Housing Zinc diecasting nickel plated / brass nickel plated
Product sheet Download product sheet
Characteristics differ between variants of a connector
