0.205" (5.21mm) and 0.250" (6.35mm) Tab Receptacles

  • Mating type Vertical

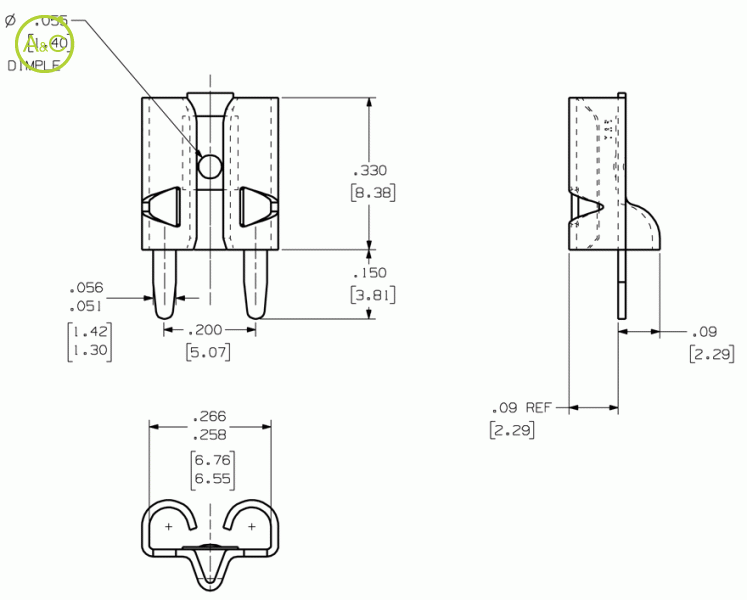

  • With dimple 1,40 mm

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Packaging

  • Loose
  • Reeled
Article Number 1022 1037 1123
Remark* With brass Tab With brass Tab With brass Tab
Extra Description With dimple 1,40 mm With dimple 1,40 mm With dimple 1,40 mm
Mating Terminal Size 0.250" x 0.032" (6.35mm x 0.81mm) Tab* 0.205" x 0.032" (5.21mm x 0.81mm) Tab* 0.250" x 0.032" (6.35mm x 0.81mm) Tin/Brass - Tab - (Low Insertion Force) 0.205" x 0.032" (5.21mm x 0.81mm) Tin/Brass - Tab - (Low Insertion Force) 0.250" x 0.025" (6.35mm x 0.63mm) Tin/Non-Brass - Relays or Fuses - Dual/Multiple Mating 0.205" x 0.025" (5.21mm x 0.64mm) Tin/Non-Brass - Relays or Fuses - Dual/Multiple Mating
Material Thickness / Type 0.016" (0.41mm) C26000 Brass 0.016" (0.41mm) C26000 Brass 0.016" (0.41mm) C26000 Brass
Standard Finish 100% Tin over Copper 100% Tin over Copper 100% Tin over Copper
Current Rating 20 Amperes* 20 Amperes* 20 Amperes*
Applicator System Loose: ZPT81-A Reeled: Model 9700, 9700 XY Loose: ZPT81-A Reeled: Model 9700, 9700 XY Loose: ZPT81-A Reeled: Model 9700, 9700 XY
Mounting Type Outward or Inward Splay Outward or Inward Splay Outward or Inward Splay
Mounting Hole Diameter 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers 0.058" ±0.003" (1.473mm ±0.076mm) on 0.200" ±0.003" (5.08mm ±0.076mm) centers
Resistance Rating 10mOhm Max 10mOhm Max 10mOhm Max
Mating Entry Top Top Top
Temperature Rating -65° to 85°C -65° to 85°C -65° to 85°C
Pieces Per Reel (loose Part No.) NA NA NA
Pieces Per Reel (reeled Part No.) / / /
Product sheet Download product sheet Download product sheet Download product sheet
