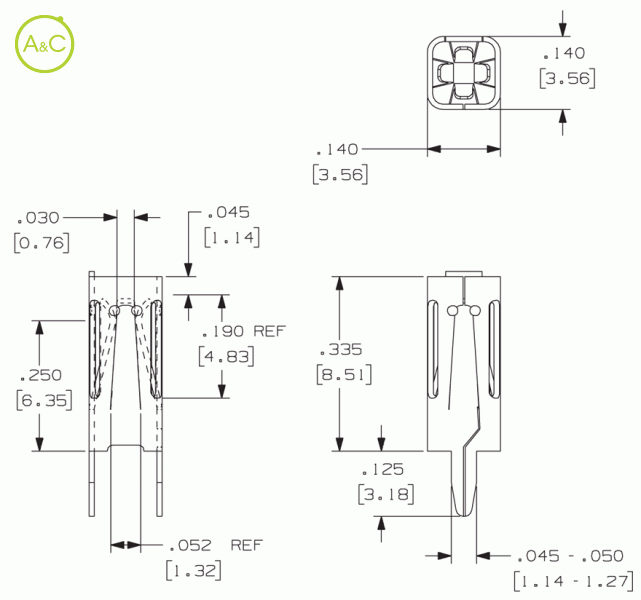

Bottom Entry 4 Beam Box Receptacles

Do you have any questions about this product?

More info on this brand:

Article Number	1062
Extra Description	Mating terminal size is 1,14-1,52 mm
Mating Terminal Size	0.045" (1.14mm) and 0.060" (1.52mm) Rd. or Sq.
Material Thickness / Type	0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish	100% Tin over Copper
Current Rating Ul	10 Amperes
Current Rating C-ul	10 Amperes
Ul File Number	E361770
Applicator System	Reeled: Model 9700, 9700 XY
Mating Type	Vertical
Mounting Type	Outward Splay
Mounting Hole Diameter	0.150" ±0.003" (3.81mm ±0.076mm)
Resistance Rating	10mOhm Max
Mating Entry	Bottom
Temperature Rating	-65° to 105°C
Insertion Force-max.	Application Dependent / Submit Mating Terminal Sample to Factory.
Withdrawal Force-max.	Application Dependent / Submit Mating Terminal Sample to Factory.
Pieces Per Reel (loose Part No.)	NA
Pieces Per Reel (reeled Part No.)	/
Product sheet	Download product sheet

Article Number	6062
Extra Description	Mating terminal size is 1,14-1,52 mm
Mating Terminal Size	0.045" (1.14mm) and 0.060" (1.52mm) Rd. or Sq.
Material Thickness / Type	0.010" (0.25mm) C51000 Phosphor Bronze
Standard Finish	100% Tin over Copper
Current Rating Ul	10 Amperes
Current Rating C-ul	10 Amperes
Ul File Number	E361770
Applicator System	Reeled: Model 9700, 9700 XY
Mating Type	Vertical
Mounting Type	Outward Splay
Mounting Hole Diameter	0.150" ±0.003" (3.81mm ±0.076mm)
Resistance Rating	10mOhm Max
Mating Entry	Bottom
Temperature Rating	-65° to 105°C
Insertion Force-max.	Application Dependent / Submit Mating Terminal Sample to Factory.
Withdrawal Force-max.	Application Dependent / Submit Mating Terminal Sample to Factory.
Pieces Per Reel (loose Part No.)	/
Pieces Per Reel (reeled Part No.)	5000
Product sheet	Download product sheet

Characteristics differ between variants of a connector
