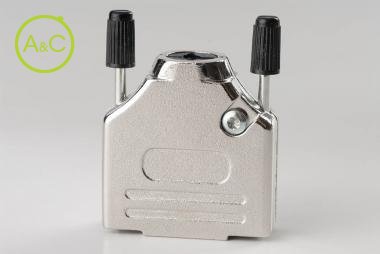

Diecast hood with straight and side cable output and screw locking

Hoods as set in bag

109 09 DC 001

109 09 DC 001

Do you have any questions about this product?

Contact our connector specialist

Send me a personalized quote

Download product sheet

More info on this brand:

Number Of Poles

15
25
37

Article Number	109 09 DC 001	109 15 DC 001
Number Of Contacts	9	15
Thread	UNC-4-40	UNC-4-40
Extra Information	Two piece diecast hood Suitable for cable diameters up to 10 mm very economical solution	Two piece diecast hood Suitable for cable diameters up to 10 mm very economical solution
Locking Style	knurled screw	knurled screw
Cable Exit	Straight 180°	Straight 180°
Cable Fixing	Cable clamp intern (al)	Cable clamp intern (al)

Article Number	109 25 DC 001
Number Of Contacts	25
Thread	UNC-4-40
Extra Information	Two piece diecast hood Suitable for cable diameters up to 10 mm very economical solution
Locking Style	knurled screw
Cable Exit	Straight 180°
Cable Fixing	Cable clamp intern (al)

Article Number	109 37 DC 001
Number Of Contacts	37
Thread	UNC-4-40
Extra Information	Two piece diecast hood Suitable for cable diameters up to 10 mm very economical solution
Locking Style	knurled screw
Cable Exit	Straight 180°
Cable Fixing	Cable clamp intern (al)

Characteristics differ between variants of a connector
