Connector Normal Type
Do you have any questions about this product?
More info on this brand:
JST
JST
Number Of Poles
- 25
- 29
| Article Number | 25FXW-SM1-G-S-TB |
| Number Of Contacts | 25 |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| General Description | 0.3mm Pitch ZIF Connector For FPC |
| Connection Type | Printed Circuit Board Connectors |
| Pitch / Style | 0.30 mm |
| Rated Current (ac/dc) | 0.2 A |
| Rated Voltage (ac/dc) | 50 V |
| Pcb Mount Style | Surface Mount Technology (SMT) |
Characteristics differ between variants of a connector

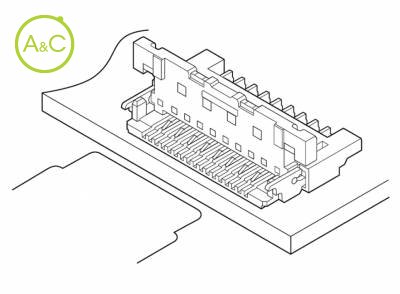

Diagram
Enlarge Diagram

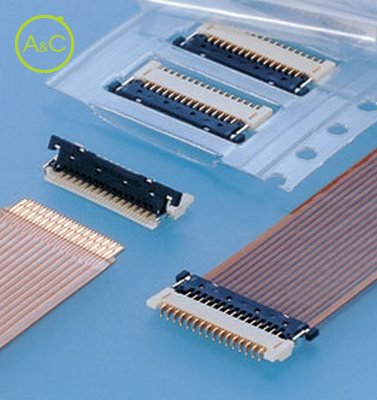

This ultra low-profile FPC connector with a mounting height of 1.0mm (.039") has a Double ZIF Flip-lock slider structure.
Ultra low-profile (1.0mm (.039") height) & adoption of Double ZIF structure
This 1.0mm (.039") height ultra low-profile connector has been designed for the LDP module of mobile phones. The Double ZIF mechanism provides easier FPC insertion, excellent durability and effective protection from wearing.
One-touch sliding operation of Molded Cover
After closing the cover, it should be pressed to slide so that it will be securely held by the enforcement tab.
This mechanism ensures that the cover remains closed even when the FPC is connected upwards.
Heat resistant design for surface mounting
It is designed for the reflowing process by using a heat resistant material for the housing.
Standards
UL Recognized E60389
RoHS Compliant
