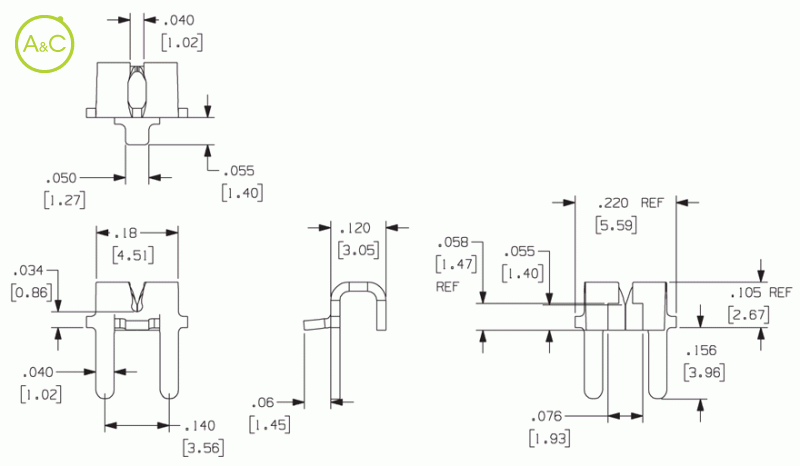

IDC (Insulation Displacement Connector) For #30-26 AWG Wire
Do you have any questions about this product?
More info on this brand:
Zierick
![Zierick](https://www.ac-solutions.be/themes/default/images/arrow.png)
- General
Article Number | 6114 |
Packaging | Reeled |
Extra Description | With 2 holes |
Material Thickness / Type | 0.020" (0.51mm) C26000 Brass |
Standard Finish | 100% Tin over Copper |
Current Rating | 10 Amperes |
Applicator System | Loose: ZPT-1114 Reeled: Model 9700, 9700 XY Wire Termination: Consult factory. |
Mounting Type | Outward or Inward Splay Surface Mount Solder 0.062" (1.57mm) thick PCB |
Mounting Hole Diameter | 2 holes 0.050" ±0.003" (1.27mm ±0.076mm) on 0.140" (3.56mm) centers |
Wire Gauge Range | #30-26 AWG |
Pieces Per Reel (reeled Part No.) | 6500 |
Product sheet | Download product sheet |
Characteristics differ between variants of a connector
