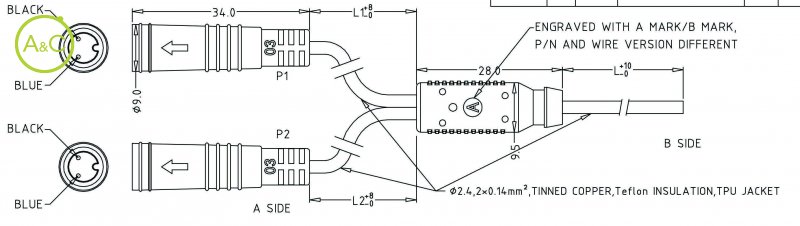

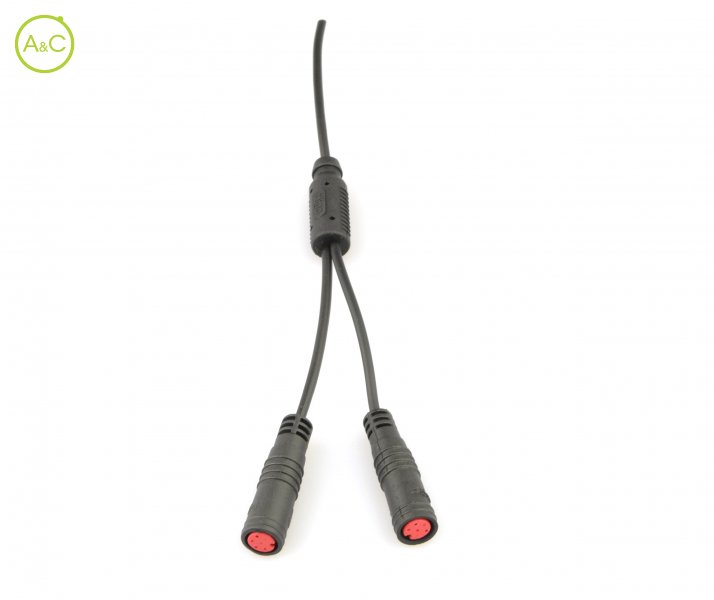

Parallel Y,2 female mini B,2P,250-1750mm,TPU2,4mm
Do you have any questions about this product?
More info on this brand:
Higo
![Higo](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
Article Number | 6300.0005 |
Color | Red |
Connector Diameter | 9 mm |
Wire Section | 0.14 mm² |
Protection Degree | IP66 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Copper Alloy |
Cable Diameter | 2.4 mm |
Insulation Wire | Teflon |
Remark | Other cable length/type on request |
Rated Current | 2 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Fitting Length | 62 mm |
Material Jacket | TPU |
Characteristics differ between variants of a connector
