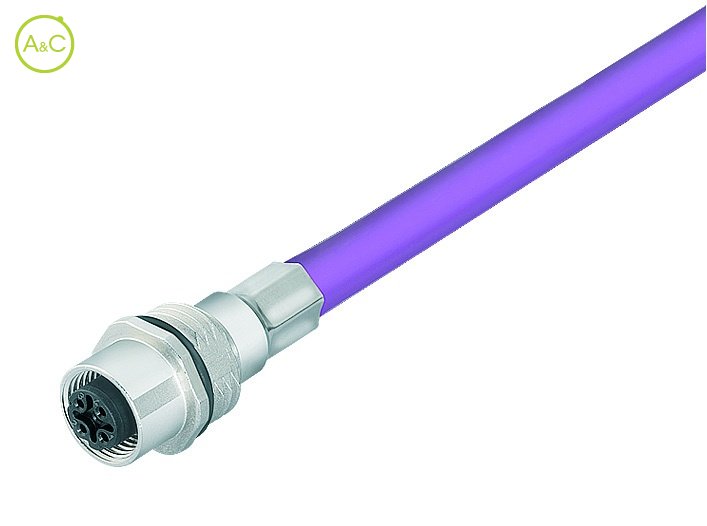

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 2
Article Number | 70 4434 246 04 |
Connector Diameter | 18 mm |
Number Of Contacts | 2 contacts |
Connector Locking System | Screw (M12-B) |
Termination | Cable |
Wire Section | 0.25 mm² |
Cable Length | 0.5 mm |
Protection Degree | IP68* |
Mating Cycles | >100 times |
Upper Temperature | +60 °C |
Lower Temperature | -20 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 4 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PA |
Material Of Housing | Brass / Zinc diecasting nickel plated |
Cable Diameter | 7,8 mm |
Fixing Thread | M16x1,5 |
Remark** | *When built-in, connected and locked with counterpart |
Product sheet | Download product sheet |
Characteristics differ between variants of a connector
