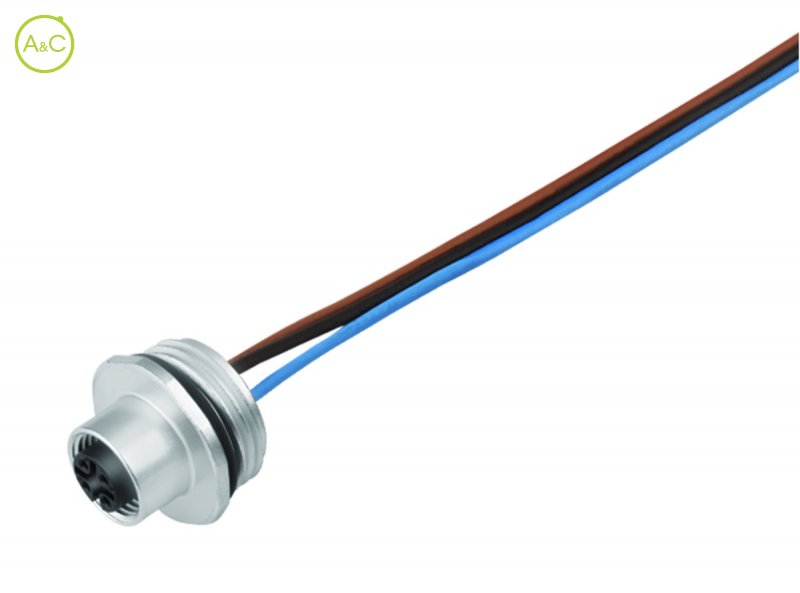

Female panel mount connector
Do you have any questions about this product?
More info on this brand:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 4
- 5
- 8
Article Number | 76 0432 0111 00004 0200 |

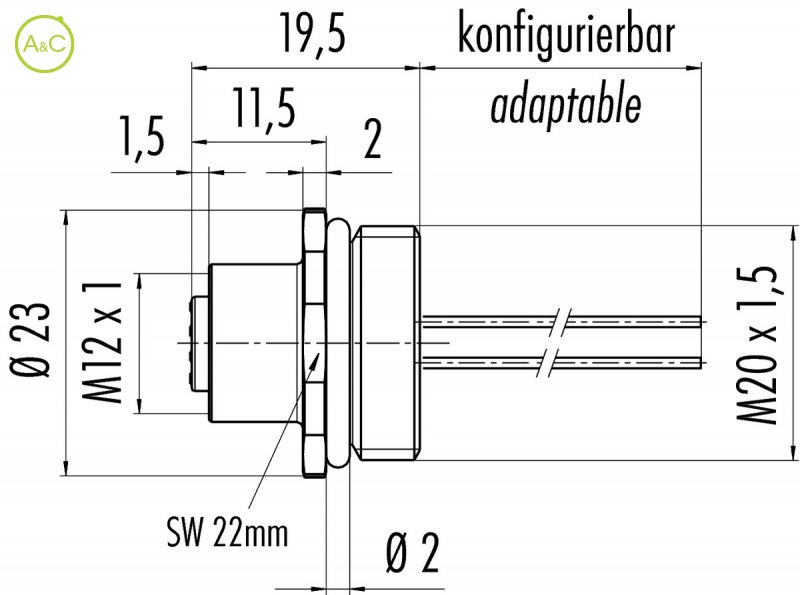

Connector Diameter | 23 mm |
Number Of Contacts | 4 contacts |
Connector Locking System | Screw (M12-A) |
Termination | Single wires |
Wire Section | 0.25 mm² |
Protection Degree | IP67 |
Mating Cycles | >100 times |
Upper Temperature | +85 °C |
Lower Temperature | -40 °C |
Rated Voltage | 250 |
Rated Impuls Voltage | 2500 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 4 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuSn (Bronze) |
Plating | Au (Gold) |
Material Of Insert | PA |
Material Of Housing | CuZn (Brass nickel plated) |
Product sheet | Download product sheet |
Characteristics differ between variants of a connector
