Connectors
Back to product overview

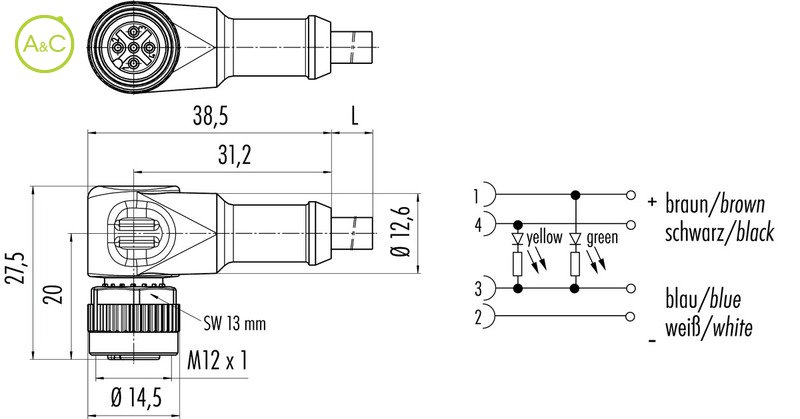

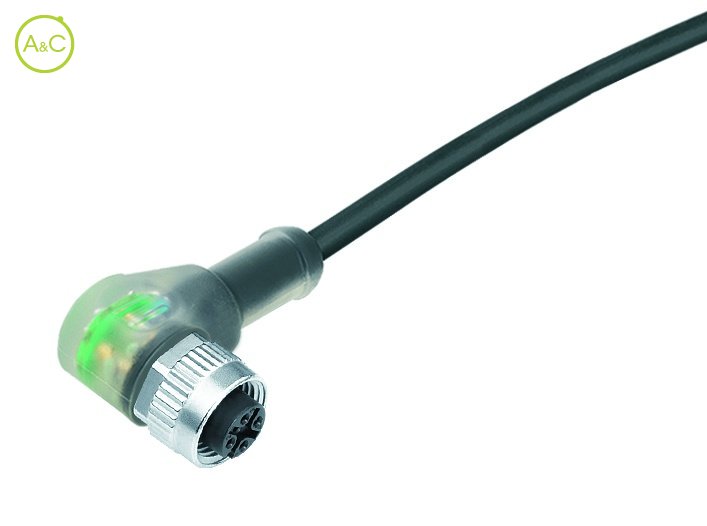

Female angled connector
Do you have any questions about this product?
More info on this brand:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 4
Article Number | 77 3634 0000 20004 0200 | 77 3634 0000 50004 0200 |
Old Article Number | 79 3436 13 04 | 79 3436 33 04 |
Connector Diameter | 14.5 mm | 14.5 mm |
Number Of Contacts | 4 contacts | 4 contacts |
Connector Locking System | Screw (M12-A) | Screw (M12-A) |
Termination | Crimp, moulded | Crimp, moulded |
Wire Section | 0.34 mm² | 0.34 mm² |
Cable Length | 2 mm | 2 mm |
Protection Degree | IP68 | IP68 |
Mating Cycles | >100 times | >100 times |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
Rated Voltage | 36 | 36 |
Rated Impuls Voltage | 500 V | 500 V |
Pollution Degree | 3 | 3 |
Overvoltage Categorie | II | II |
Material Group | II | II |
Rated Current (40°) | 4 A | 4 A |
Max. Contact Resistance | 3 mΩ | 3 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Plating | Au (Gold) | Au (Gold) |
Material Of Insert | PUR | PUR |
Material Of Housing | PUR | PUR |
Cable Diameter | 4,5 mm | 4,5 mm |
Cable Jacket Material | PVC | PUR |
Insulation Wire | PVC | PVC |
Product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
