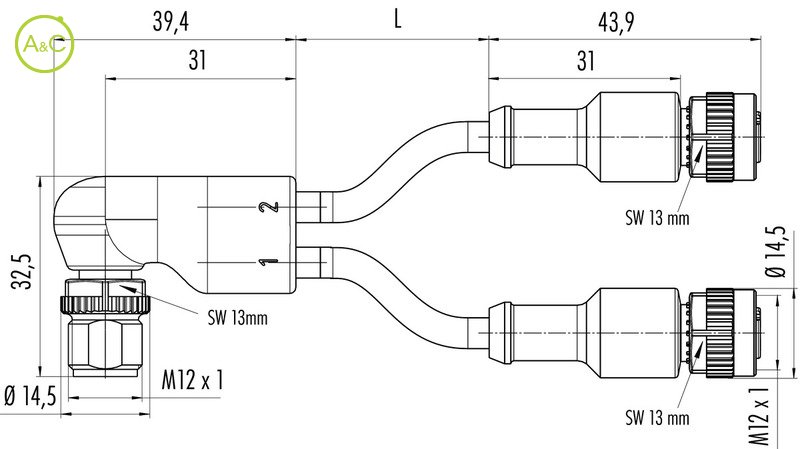

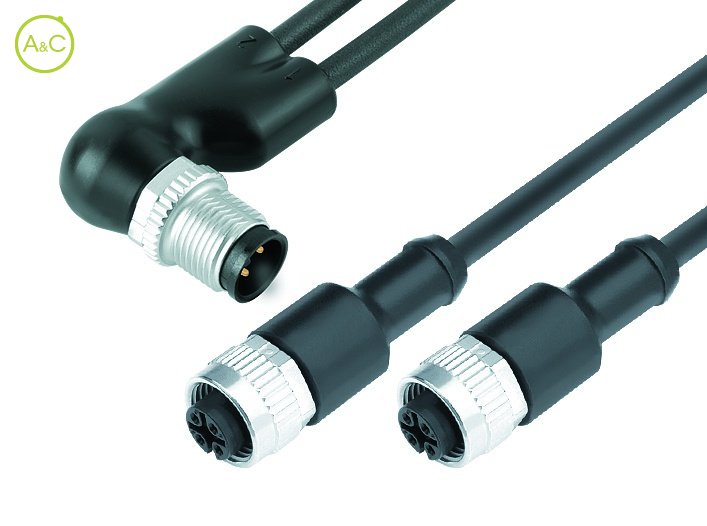

Angled duo male connector M12x1, 2 female cable connectors M12x1

Number Of Poles

  • 4/3
Article Number 77 9827 3430 50003 0100 77 9827 3430 50003 0200
Connector Diameter 14,5 mm 14.5 mm
Number Of Contacts 4/3 contacts 4/3 contacts
Connector Locking System Screw Screw
Termination Crimp, moulded Crimp, moulded
Wire Section 0,34 mm² 0.34 mm²
Cable Length 1 mm
Protection Degree IP68 IP68
Mating Cycles >100 times >100 times
Upper Temperature +85 °C +85 °C
Lower Temperature -25 °C -25 °C
Rated Voltage 250 250
Rated Impuls Voltage 2500 V 2500 V
Pollution Degree 3 3
Overvoltage Categorie II II
Material Group II II
Rated Current (40°) 4 A 4 A
Max. Contact Resistance 3 mΩ 3 mΩ
Material Of Contact Pin CuZn (Brass), Socket (Bronze) Pin CuZn (Brass), Socket (Bronze)
Plating Au (Gold) Au (Gold)
Material Of Insert PUR PUR
Material Of Housing PUR PUR
Cable Diameter 4,5 mm 4,5 mm
Cable 3x0,34 PUR mm² 3x0,34 PUR mm²
Cable Jacket Material PUR PUR
Insulation Wire PVC PVC
Product sheet Download product sheet
Characteristics differ between variants of a connector
