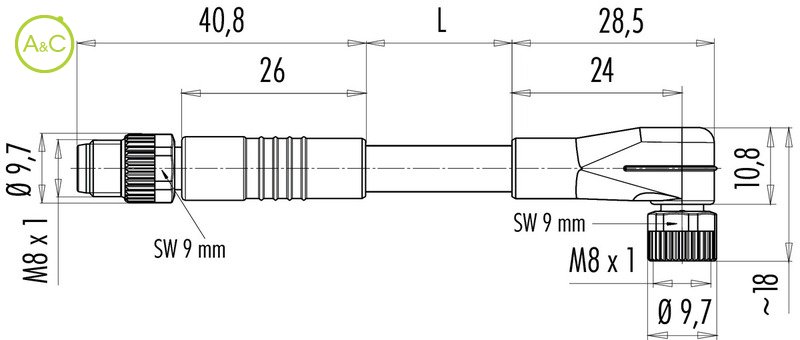

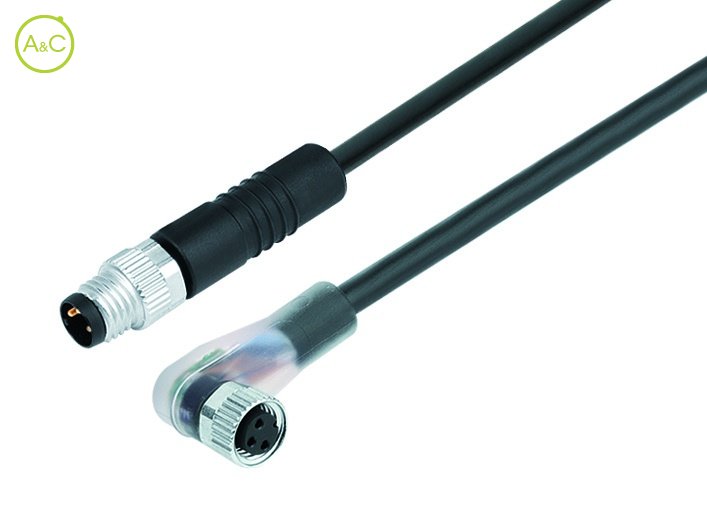

Male cable connector M8x1 - Female angled connector with LED PNP NOC M8x1
Do you have any questions about this product?
More info on this brand:
Binder
![Binder](https://www.ac-solutions.be/themes/default/images/arrow.png)
Number Of Poles
- 3
Article Number | 79 5056 10 03 | 79 5056 20 03 |
Connector Diameter | 9.7 mm | 9.7 mm |
Number Of Contacts | 3 contacts | 3 contacts |
Connector Locking System | Screw | Screw |
Termination | Crimp, moulded | Crimp, moulded |
Wire Section | 0.25 mm² | 0.25 mm² |
Protection Degree | IP67 | IP67 |
Mating Cycles | >100 times | >100 times |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
Rated Voltage | 10-30 | 10-30 |
Rated Impuls Voltage | 500 V | 500 V |
Pollution Degree | 3 | 3 |
Overvoltage Categorie | II | II |
Material Group | II | II |
Rated Current (40°) | 4 A | 4 A |
Max. Contact Resistance | 3 mΩ | 3 mΩ |
Material Of Contact | Pin CuZn (Brass), Socket (Bronze) | Pin CuZn (Brass), Socket (Bronze) |
Plating | Au (Gold) | Au (Gold) |
Material Of Insert | PUR | PUR |
Material Of Housing | PUR | PUR |
Cable Diameter | 4,5 mm | 4,5 mm |
Cable | 3x0,25 PUR mm² | 3x0,25 PUR mm² |
Cable Jacket Material | PUR | PUR |
Insulation Wire | PVC | PVC |
Product sheet | Download product sheet | Download product sheet |
Characteristics differ between variants of a connector
